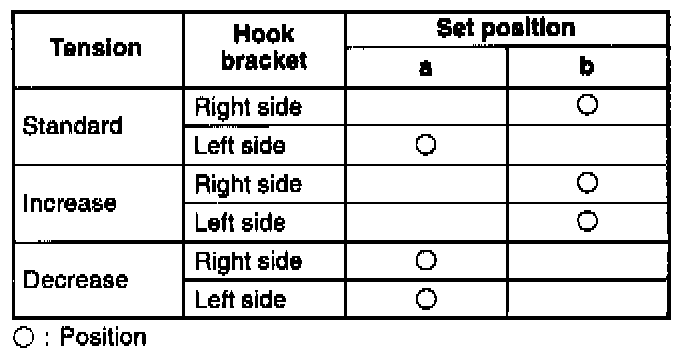

Balance Spring Adjustment

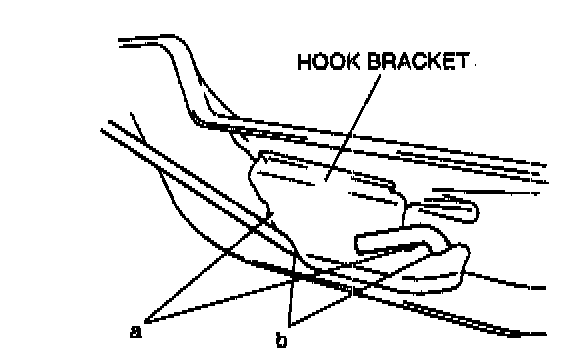

Right Side:

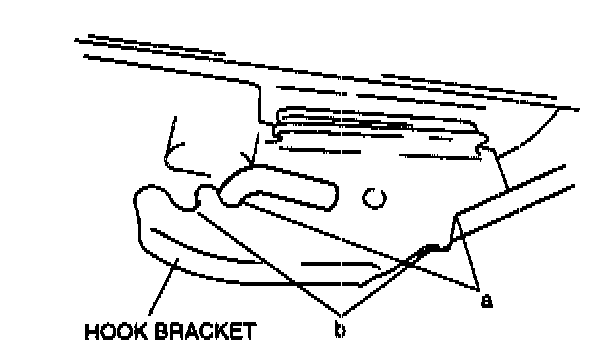

Left Side:
^ Slide the balance spring to the desired position as described by using a tape-wrapped screwdriver.
NOTE: The trunk lid should raise 70 - 300 mm {2.8 - 11.8 in} when the trunk lid is unlocked.
^ Slide the balance spring to the desired position as described by using a tape-wrapped screwdriver.
NOTE: The trunk lid should raise 70 - 300 mm {2.8 - 11.8 in} when the trunk lid is unlocked.
