Wiper Blade: Adjustments
1.
Operate the windshield wiper motor to set the wipers in the park position.
2.

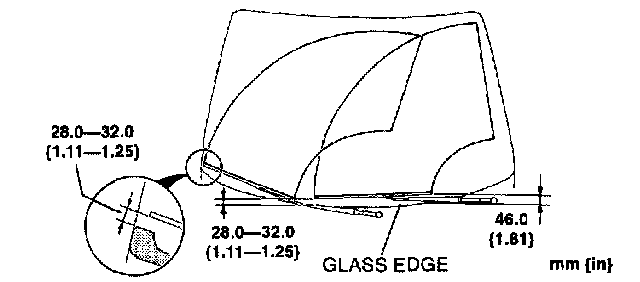

Set the windshield wiper arm height as shown.
