Shift Linkage: Service and Repair

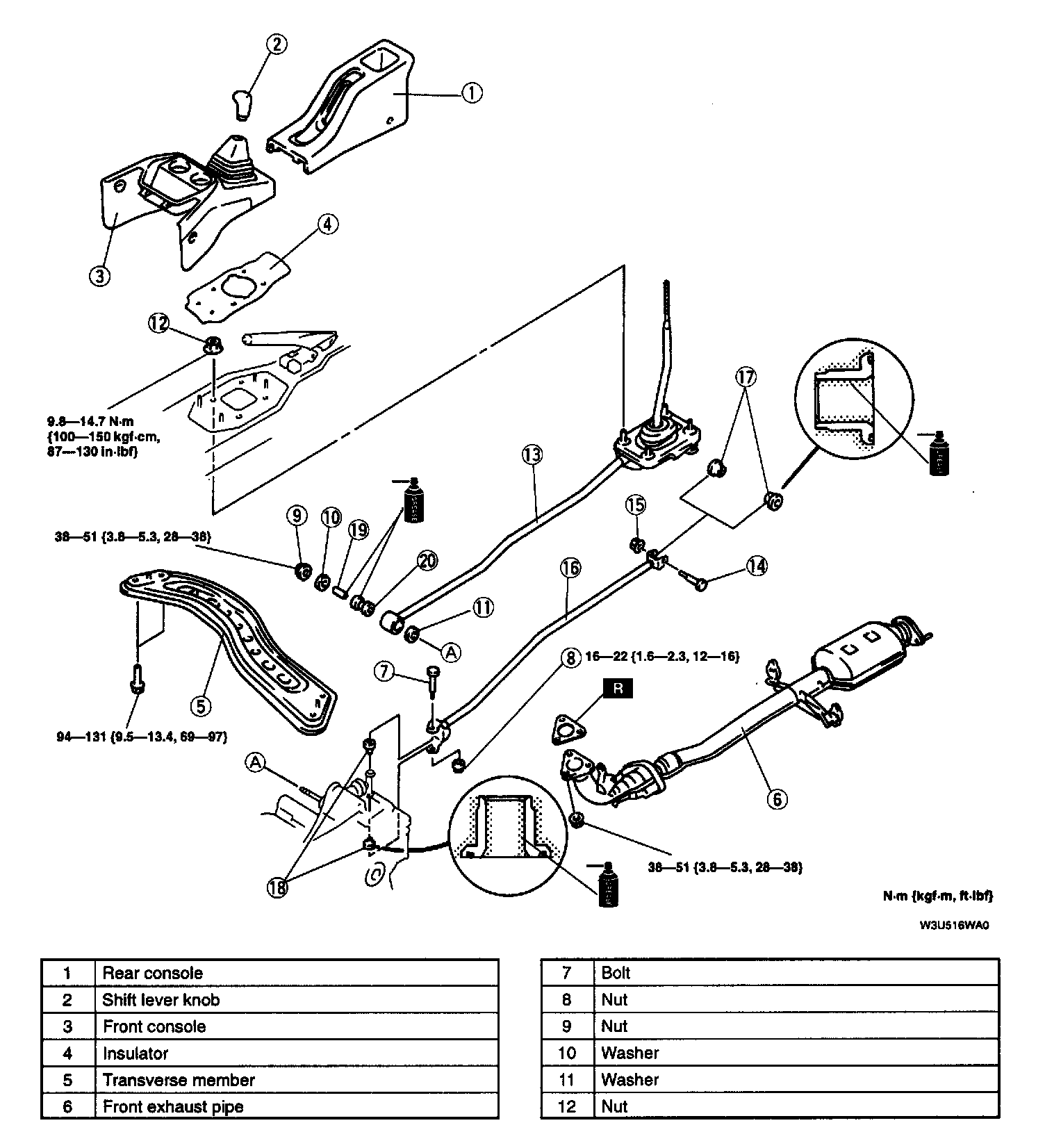

SHIFT MECHANISM DISASSEMBLY/ASSEMBLY

Part 1 Of 2:

Part 2 Of 2:

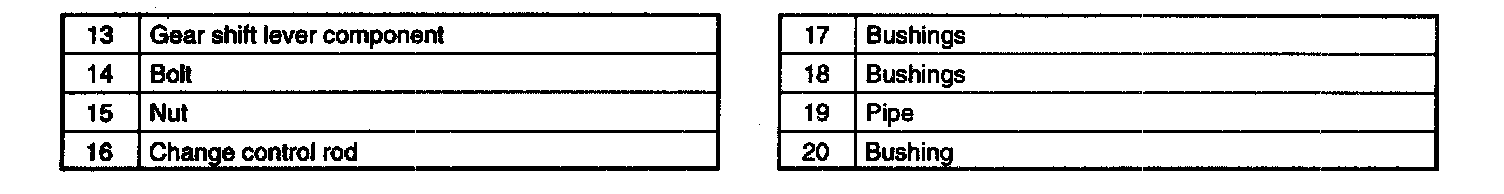

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
