Fuel Injector Resistance Test

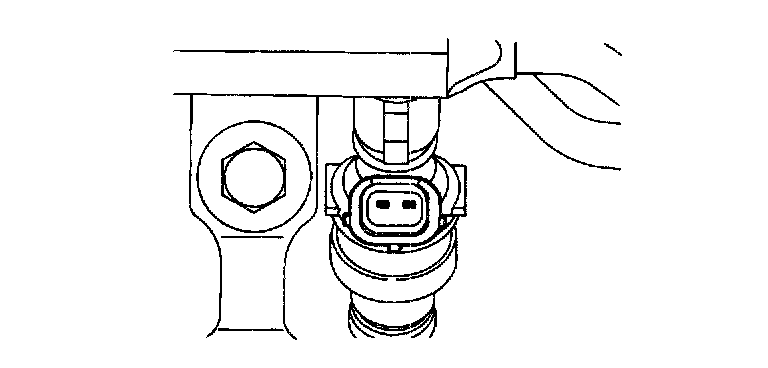

FUEL INJECTOR RESISTANCE TEST1. Disconnect the fuel injector connectors.
2. Measure the resistance of the fuel injectors.
Resistance: approximately 13.8 ohms at 20°C (68°F)
3. If not as specified, replace the fuel injector. (Refer to FUEL INJECTOR SERVICE AND REPAIR.)
