Accelerator Pedal: Service and Repair

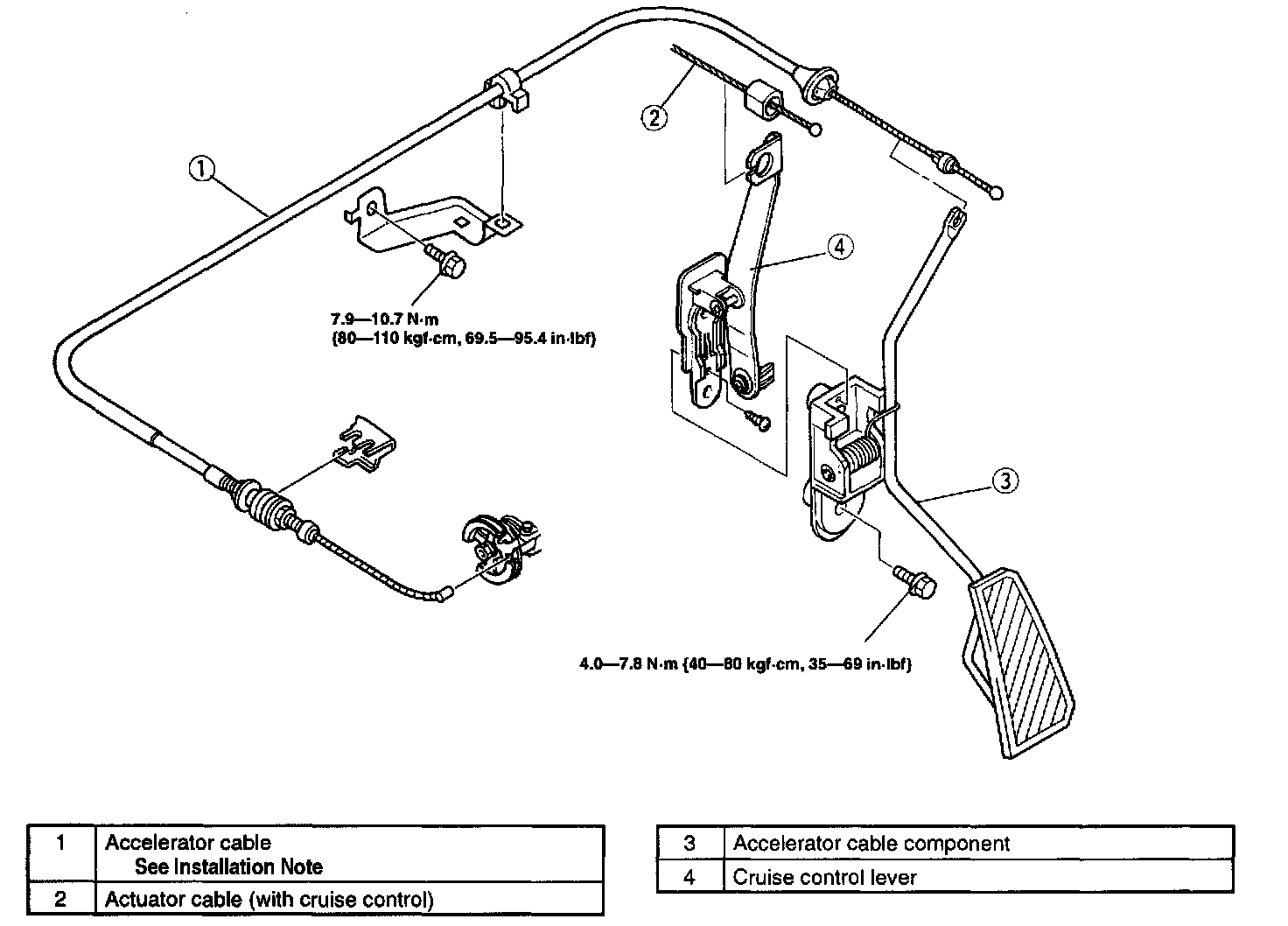

ACCELERATOR PEDAL REMOVAL AND INSTALLATION




1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

- Carry out the "THROTTLE CABLE INSPECTION / ADJUSTMENT" procedure after installing the accelerator cable.
