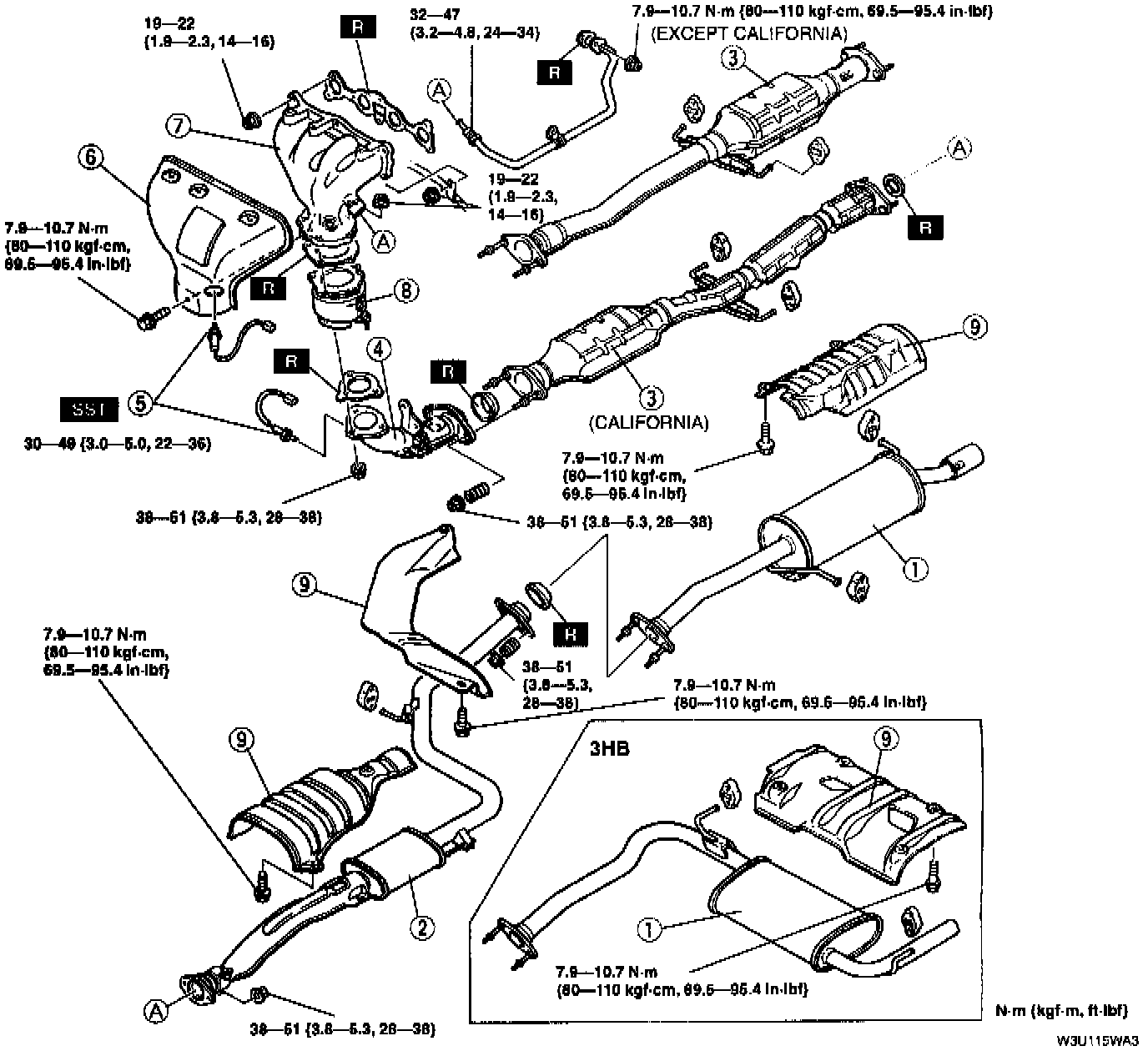

Catalytic Converter: Locations

Legend

1 Main silencer
2 Presilencer
3 Three way catalytic converter
4 Front pipe
5 Heated oxygen sensor
6 Exhaust manifold insulator
7 Exhaust manifold
8 Warm up three way catalytic converter
9 Insulator
