Home
>>
Mazda
>>
1998
>>
Protege DX L4-1489cc 1.5L DOHC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
B-1A
B-1A

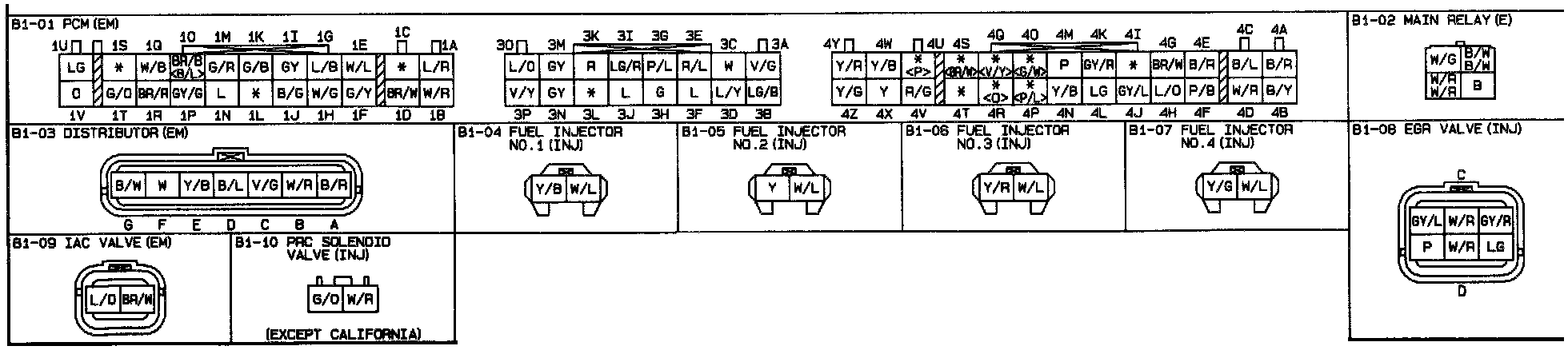

Engine Control System/EC-AT Control System-Connectors:
