Spot Light

Vehicle Equipped with the Sunroof only




1. Disconnect the negative battery cable.

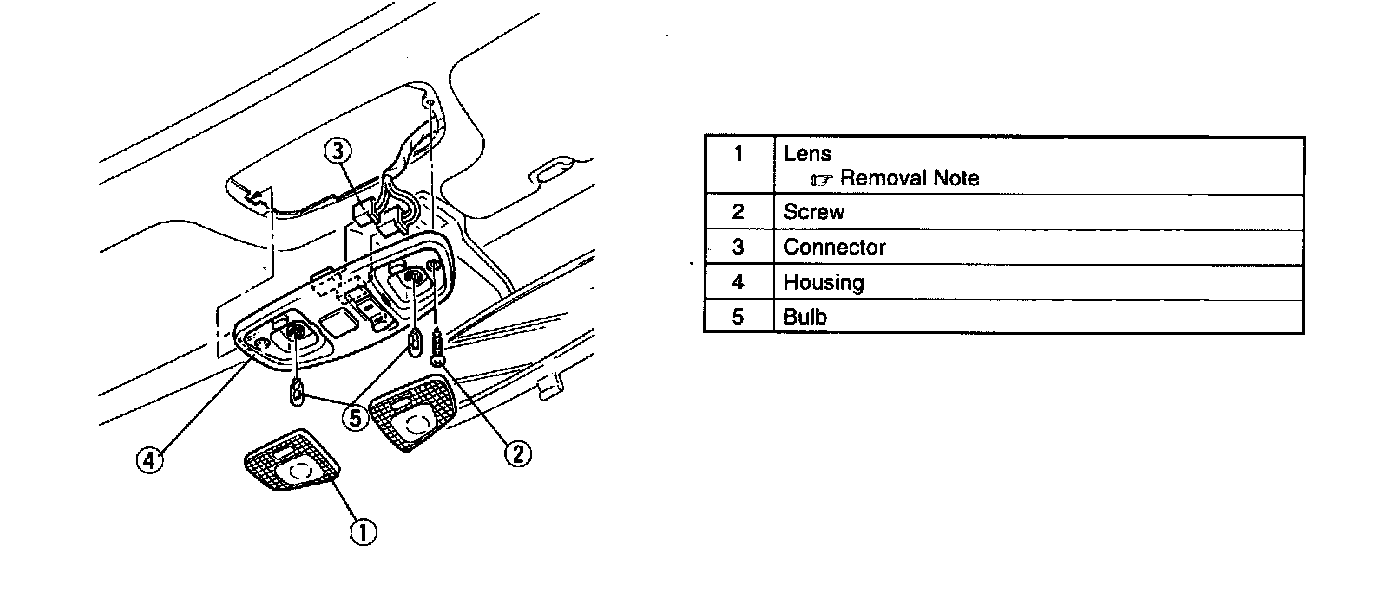

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

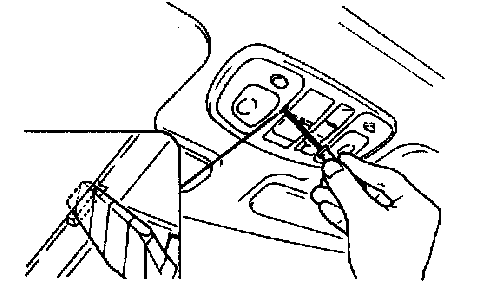

Lens removal note




1. Insert a flathead screwdriver which has been wrapped in tape.
2. Twist the screwdriver to remove the lens.
