Air Duct: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the front seat.
3. Remove the front console and side wall.
4. Remove the PCM.
5. Remove the front scuff plate and front side trim.
6. Turn over the floor covering.

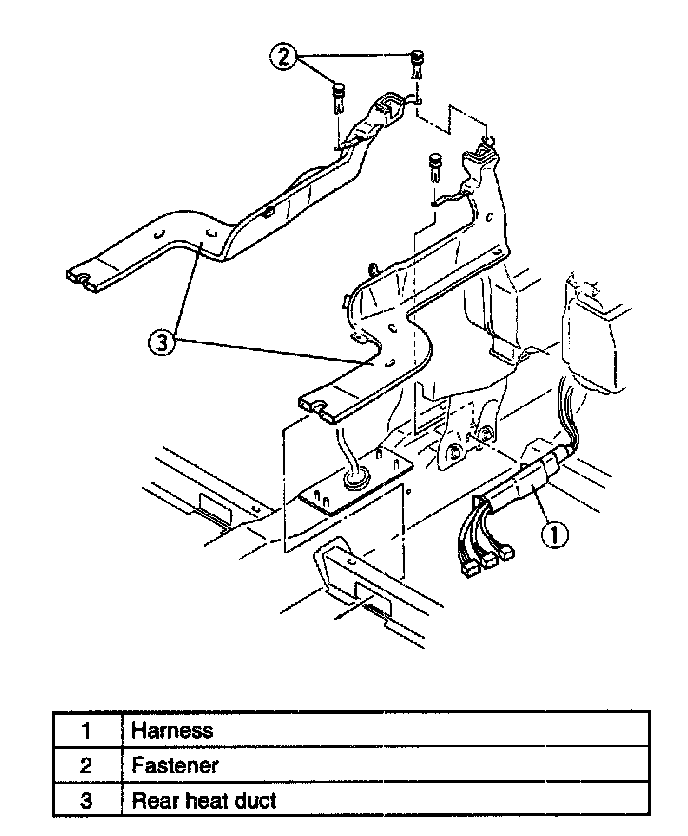

7. Remove in the order indicated in the table.
8. Install in the reverse order of removal.
