Rear

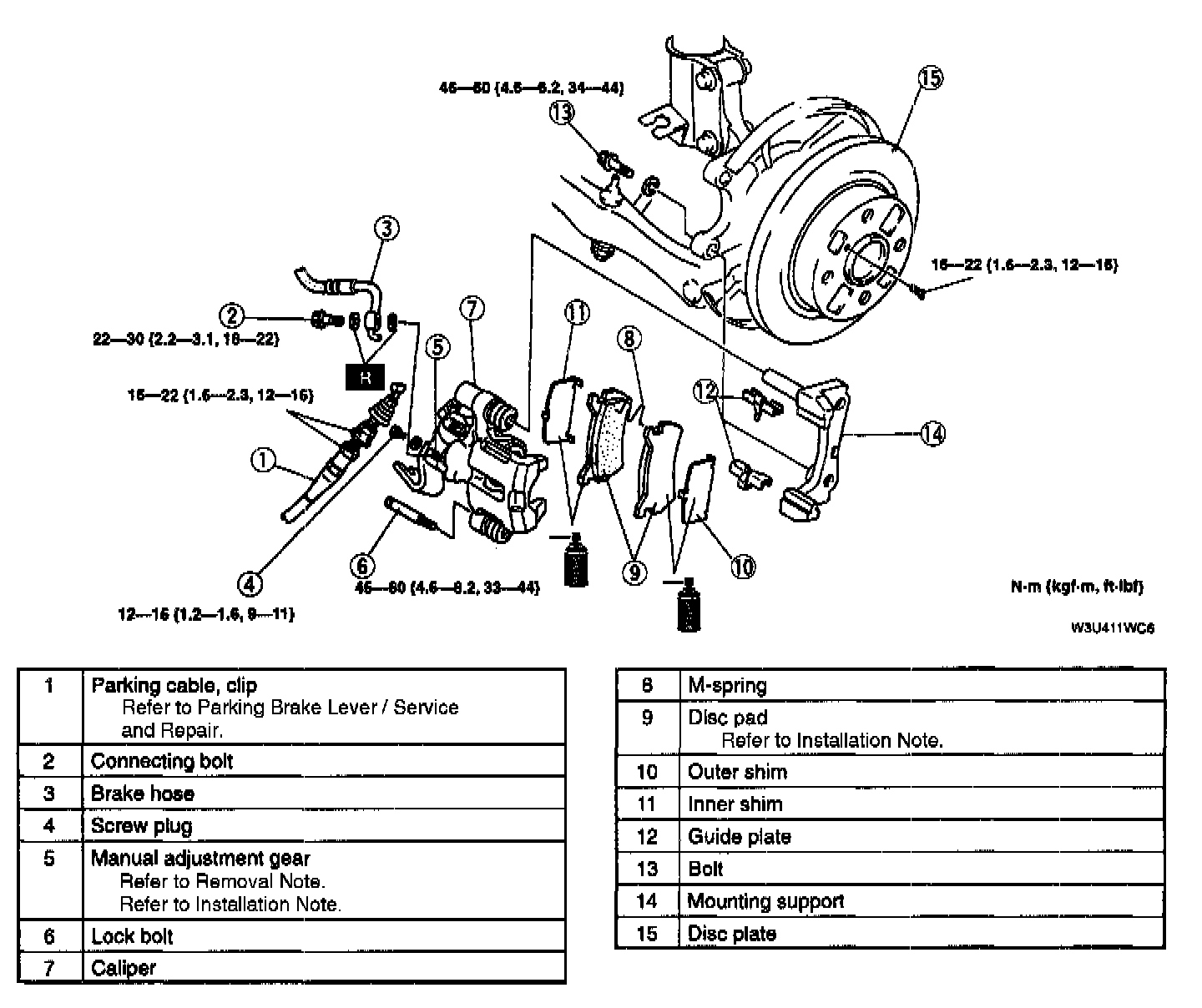

REMOVAL AND INSTALLATION





1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. After installation, depress the pedal several times. Then rotate the wheel by hand, anal verify that the brakes do not drag.


Manual Adjustment Gear Removal Note





- Turn the manual adjustment gear counterclockwise by using an Allen wrench to pull the brake caliper piston inward. (Turn until it stops.)


Disc Plate Removal Note





- Mark the wheel hub bolt and disc plate before removal for reference during installation.


Disc Pad Installation Note





1. Push the piston fully inward by using the Special Service Tool (SST).

2. Install the disc pad.


Manual Adjustment Gear Installation Note

1. Turn the manual adjustment gear clockwise until the brake pads just touch the disc plate.

2. Return the manual adjustment gear 1/3-turn.


Disc Plate Installation Note





1. Remove any rust or grime on the contact face of the disc plate and wheel hub.

2. Install the disc plate and align the marks made before removal.
