Rear

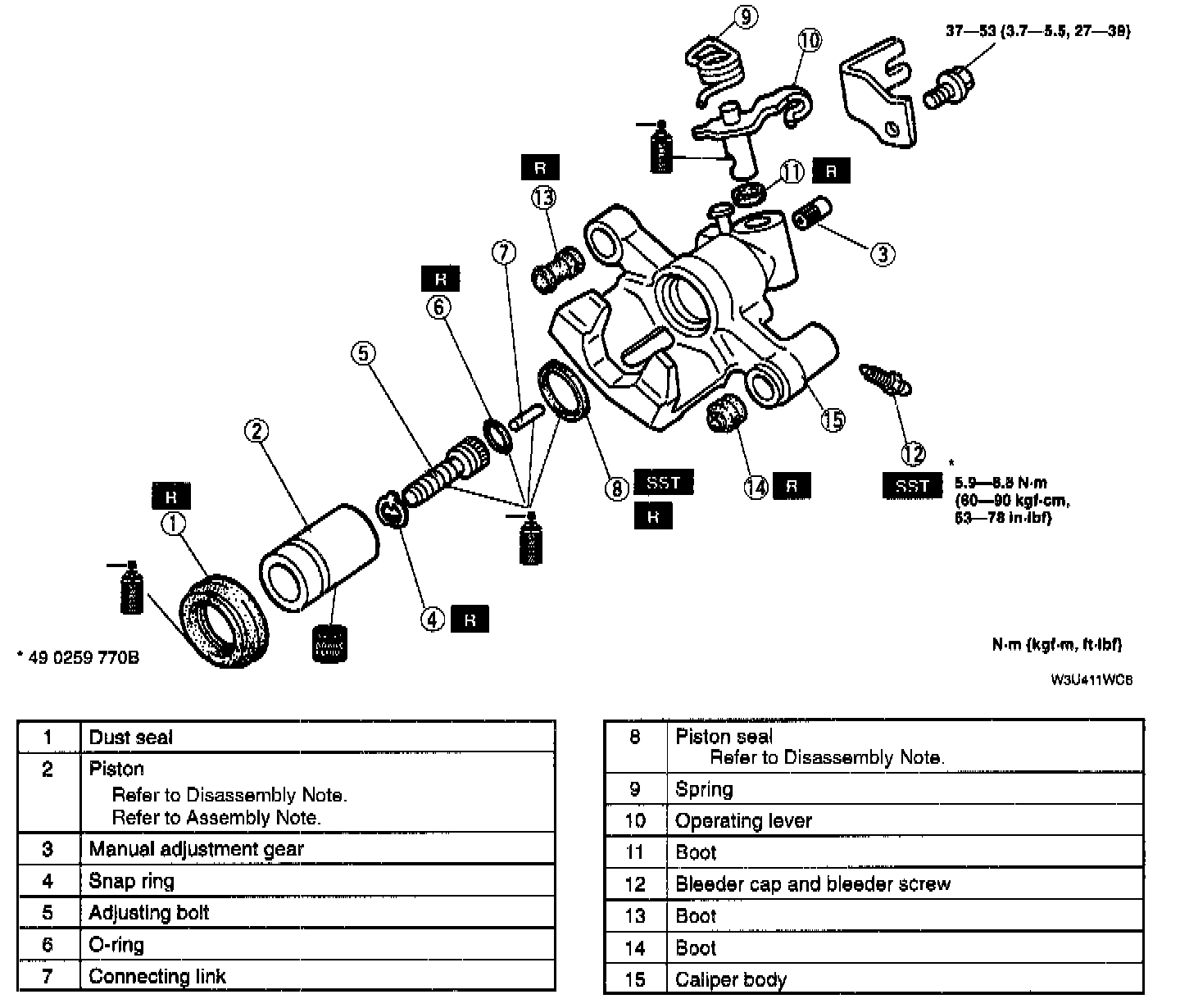

DISASSEMBLY AND ASSEMBLY
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.





Piston Disassembly Note
- Turn the adjustment gear clockwise by using an Allen wrench to remove the piston from the adjustment gear. (Turn the adjustment gear until it becomes easy to turn.)





Piston Seal Disassembly Note

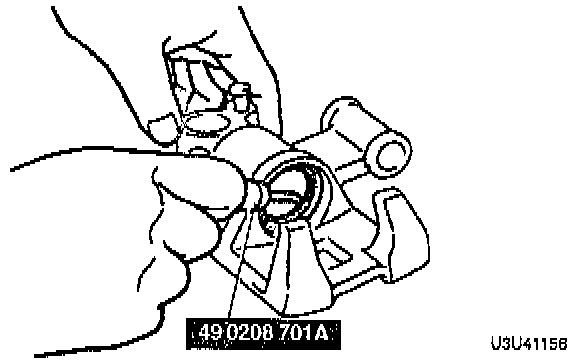

- Remove the piston seal from the caliper by using the Special Service Tool (SST).





Piston Assembly Note
- Insert the piston into the caliper and turn the adjustment gear counterclockwise by using an Allen wrench to pull the piston inward. (Turn until it stops.)
