Power Door Lock Actuator: Testing and Inspection

1. Remove the door lock.

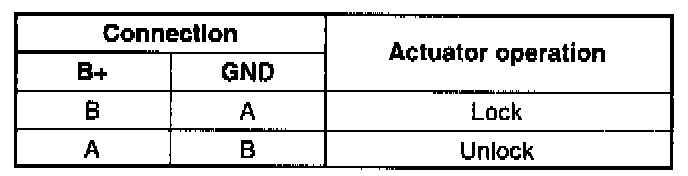

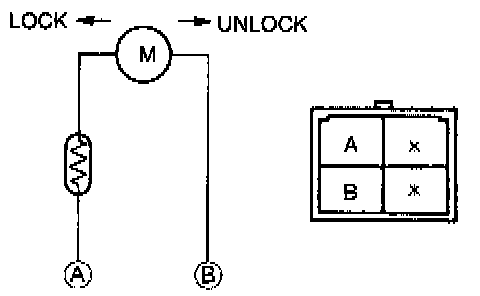

2. Apply battery positive voltage to the door lock connector terminals and check the operation of the actuator.
3. If not as specified, replace the door lock.
