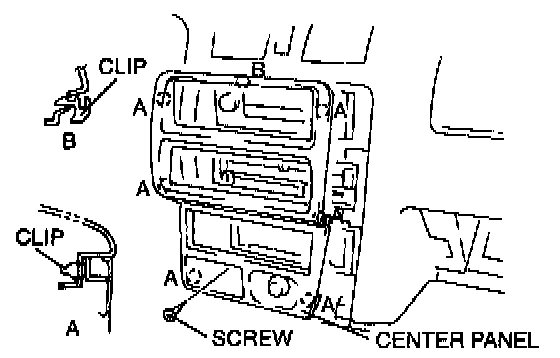

Center Panel

1. Remove the rear console.
2. Remove the front console.
3. Remove the ashtray.
4. Remove the center panel installation screw.




5. Pull the center panel forward to disengage the clips and remove the center panel.
6. Install in the reverse order of removal.
