Selector Lever

SELECTOR LEVER INSPECTION (GF4A-EL)
1. Turn the ignition switch to ON (engine is off).

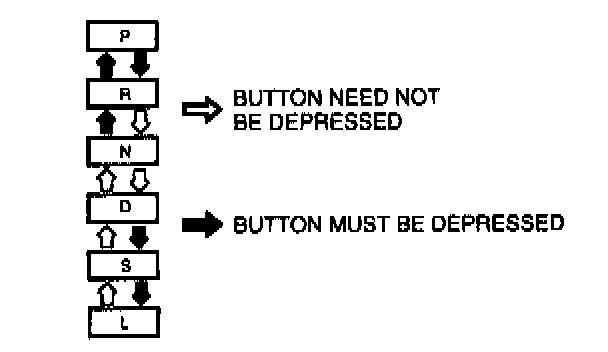

2. With the brake pedal depressed, verify that there is a "click" at each range when shifted in the pattern shown.
3. Verify that the selector lever can only be shifted as shown.
4. Verify that there is a "click" at each position when shifted from P position to L range.
5. Verify that the positions of the selector lever and the indicator are aligned.
6. If not as specified, adjust the indicator panel.
7. Verify that the vehicle operates in each selected range.
8. If not as specified, adjust the transaxle range switch.
