Removal and Installation

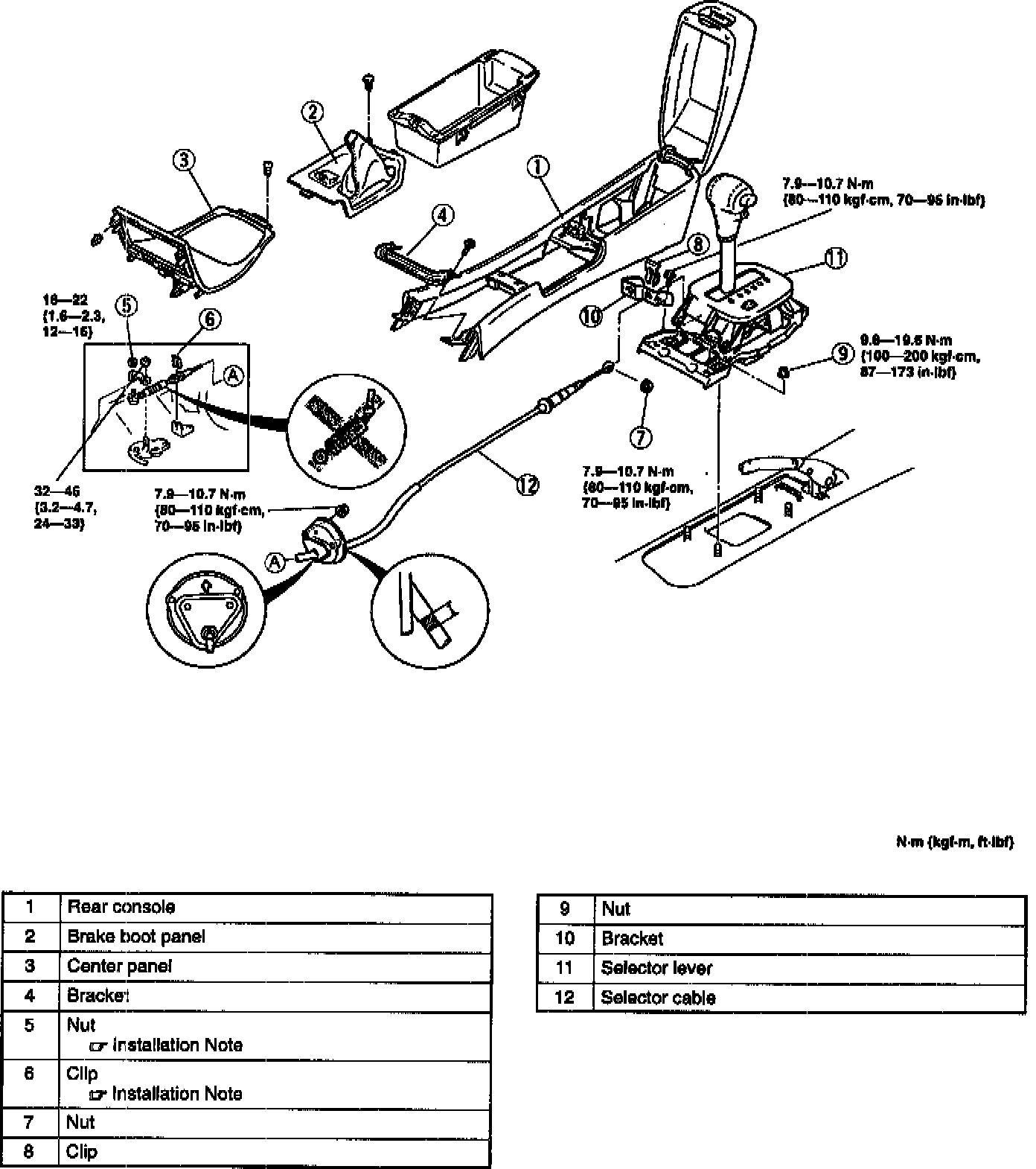

SELECTOR LEVER REMOVAL / INSTALLATION (GF4A-EL)





1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

Clip Installation Note





- Install the clip flush to the selector cable bracket.

Nut Installation Note





1. Shift the selector lever and manual shaft to P position.

CAUTION: Bending the selector cable as shown in the image will damage the cable and cause it to become loose during shifting. When handling and installing the selector cable, hold it straight.

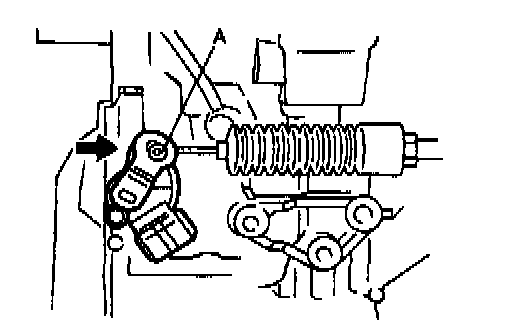

2. After verifying that the selector cable boot is not twisted, install the selector cable to the selector lever, and tighten nut A.

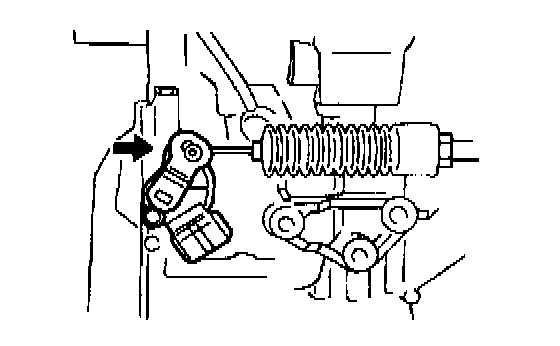

3. Push the selector cable in the direction of the arrow until it doesn't move any further.

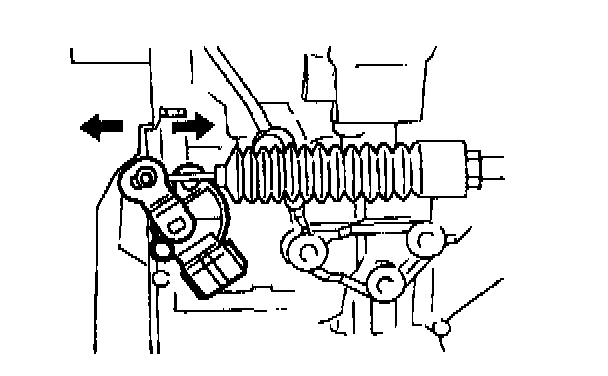

4. Position the selector cable so that there is no load in the direction of the arrows, and tighten the nut.

Tightening torque 16 - 22 Nm (1.6 - 2.3 kgf-m, 12 - 16 ft. lbs.)

5. Shift the selector lever from P position to L range, and make sure that there is no interference from other components in that area.
