Disassembly and Assembly

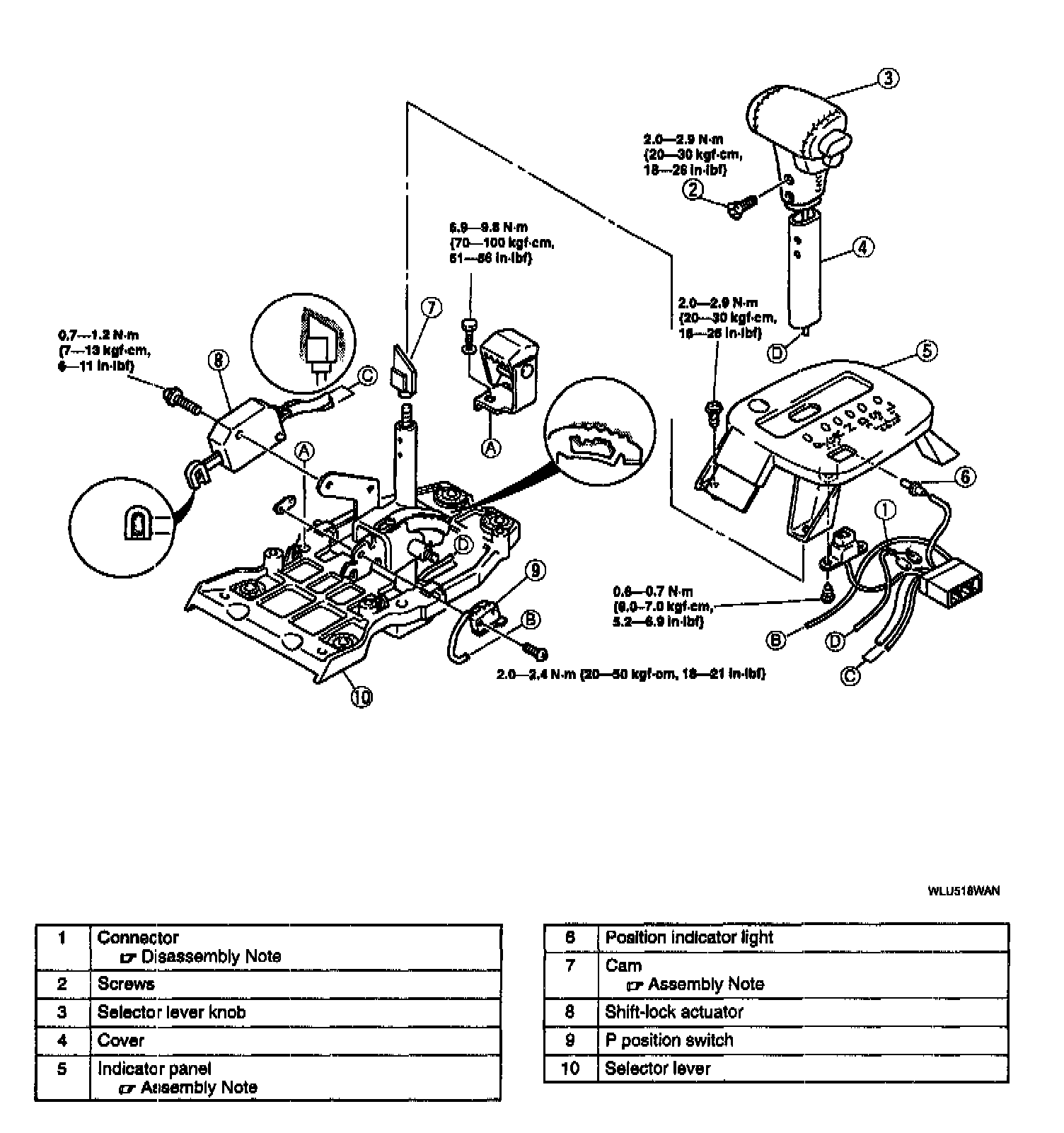

SELECTOR LEVER DISASSEMBLY/ASSEMBLY (GF4A-EL)





1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Connector Disassembly Note

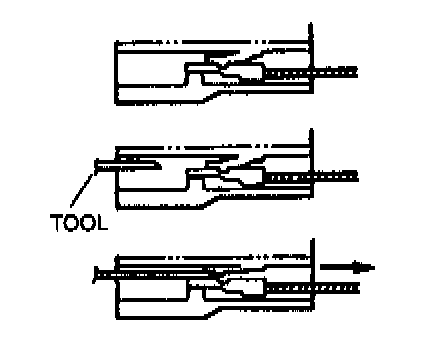

1. Insert a thin piece of metal from the terminal side of the connector, and press down the terminal locking tab.





2. Pull the terminal out of the connector.

Cam Assembly Note
1. Loosely install the cam to the push rod.

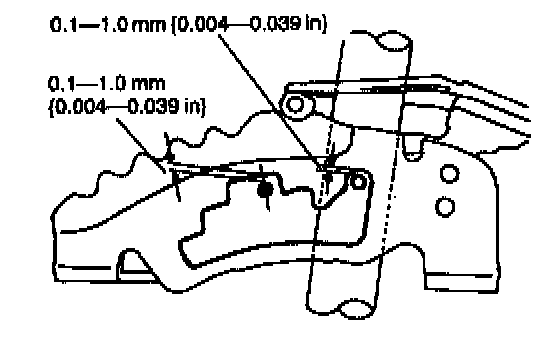

2. Adjust the clearance between the guide plate and the guide pin by turning the cam.





3. Clearance can be made smaller by turning the cam clockwise.
4. Install the selector lever knob and verify that the clearance is as specified.
5. If not, repeat from step 2.
6. Remove the selector lever knob.

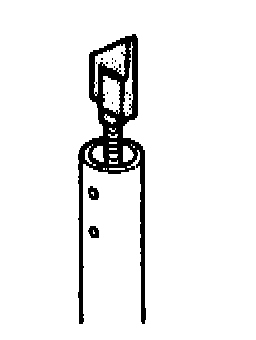

7. Apply grease to the cam as shown.

Indicator Panel Assembly Note
1. Shift the selector lever to P position.

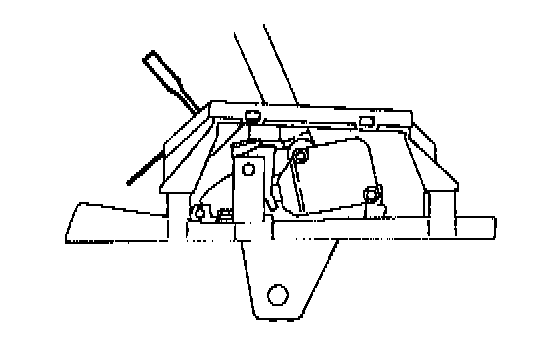

2. Align the alignment screw in the slider with the holes in the indicator panel. Install heavy-gauge wire to hold the slider.
3. Temporarily install the indicator panel to the selector lever bracket.

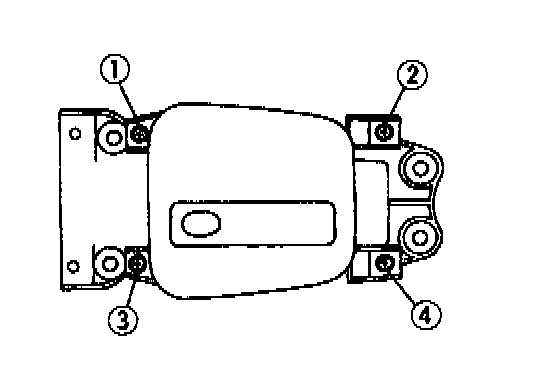

4. Tighten the indicator panel screws in the order shown in the image.

Tightening torque 2.0 - 2.9 Nm (20 - 30 kgf-cm, 18 - 26 inch lbs.)

5. Remove the wire.
6. Verify that the selector lever properly aligns with the indicator panel in each range.
