Fluid Leakage Inspection

CAUTION: Never hold the steering wheel to the extreme left or right for more than five seconds with the engine running. This could damage power steering pump.

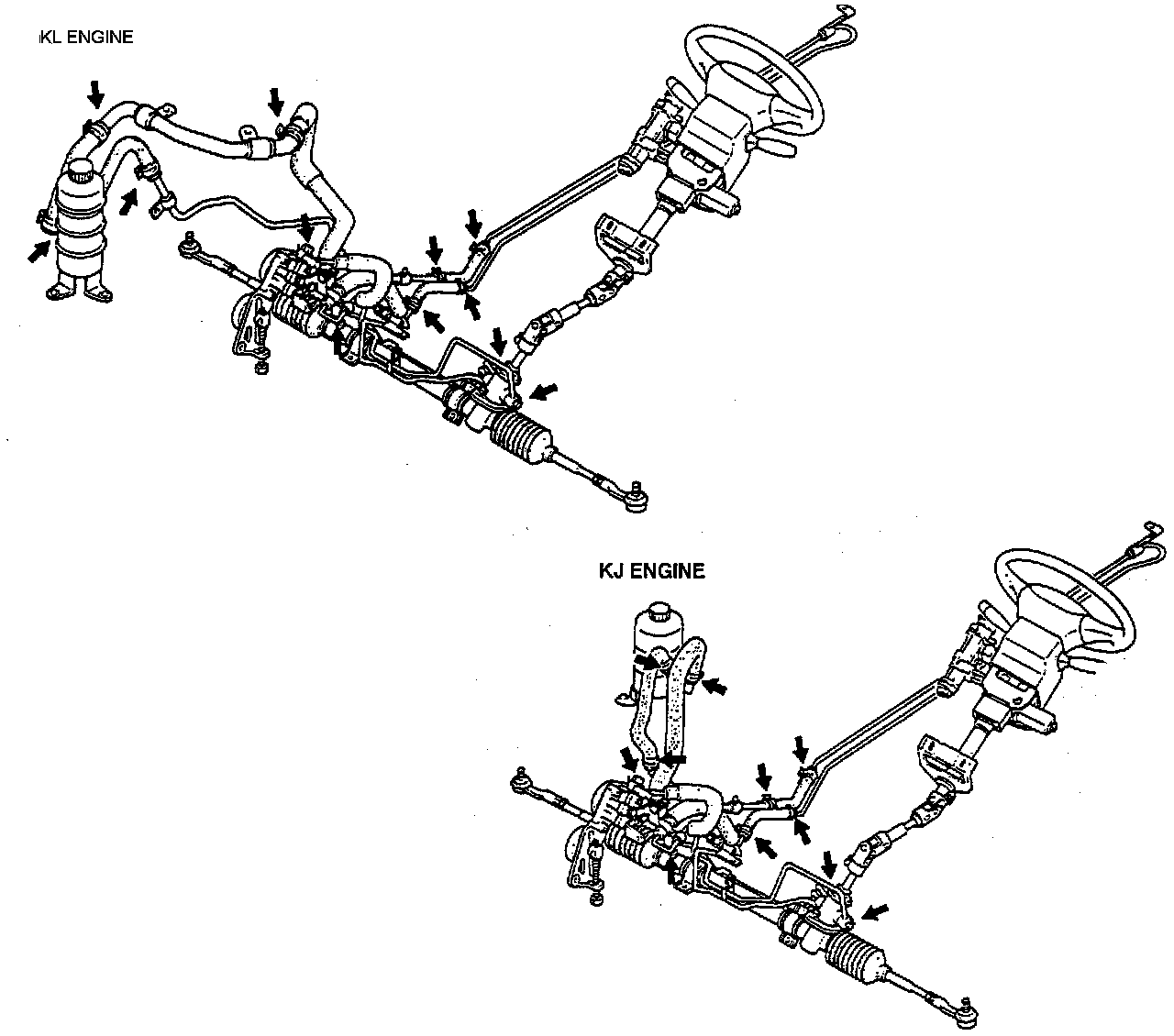

Start the engine and let it idle. Turn the steering wheel fully left and right to apply fluid pressure. Inspect the points shown in the figure for fluid leakage.
