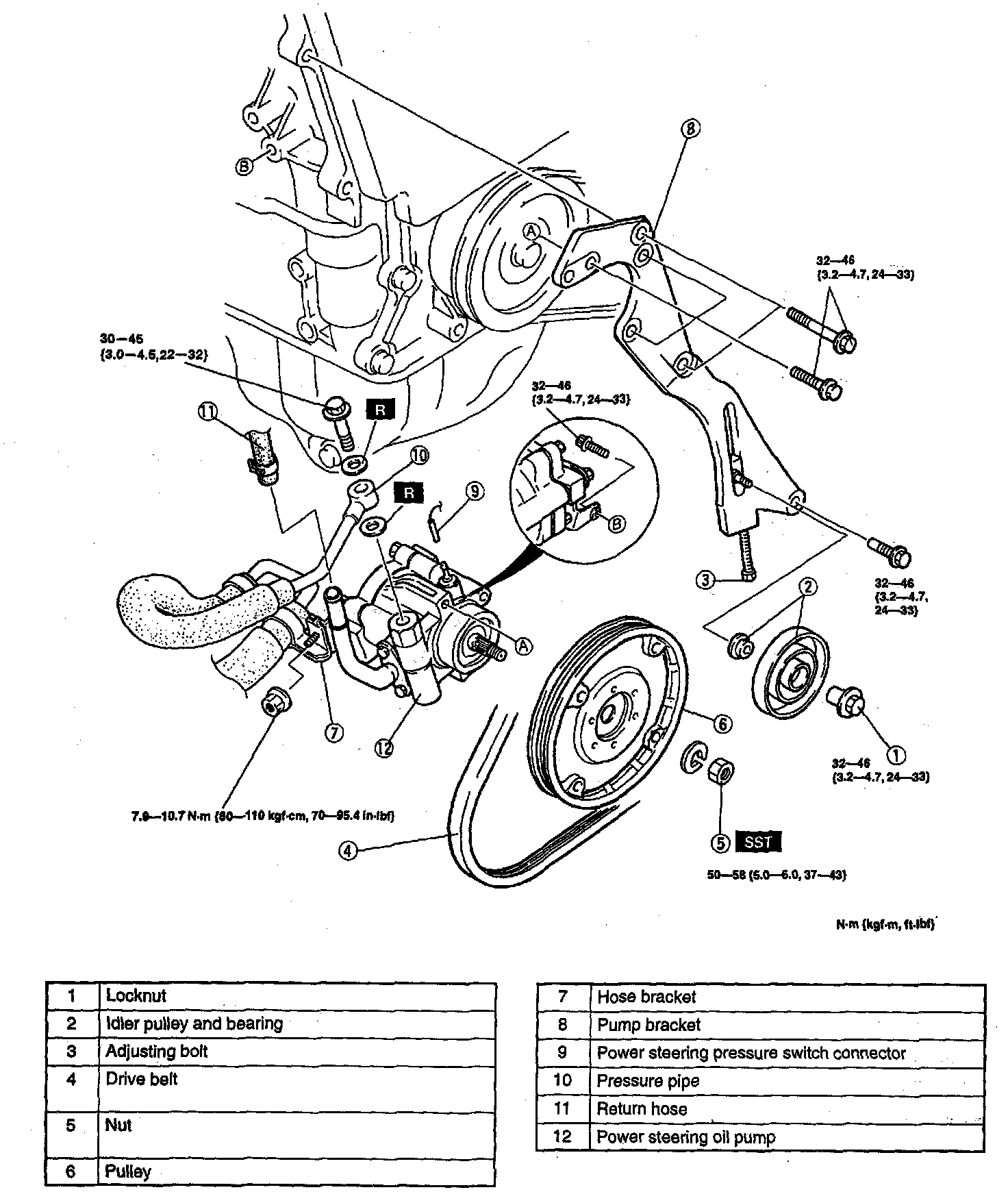

Removal and Installation

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

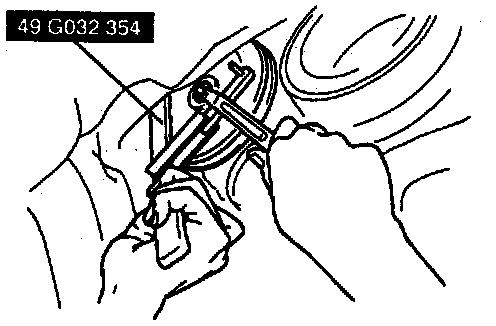

Nut Removal/Installation Note
- Insert the Special Service Tool (SST) into the hole of the pulley. While holding the pulley, loosen/tighten the nut.
