Daytime Running Lamp Relay: Testing and Inspection
1.
Disconnect the negative battery cable.
2.
Remove the DRL relay.
3.

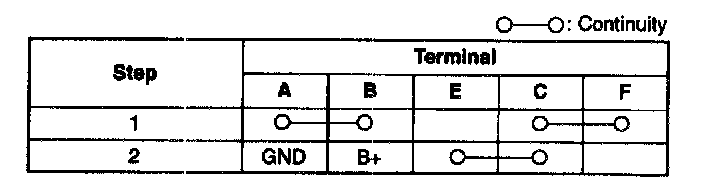

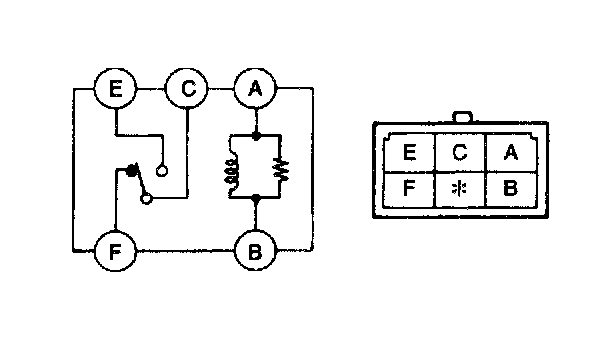

Inspect for continuity between the DRL relay terminals by using an ohmmeter.
4.
If not as specified, replace the DRL relay.
