Sunroof / Moonroof Relay: Testing and Inspection

1. Remove the sunroof relay.

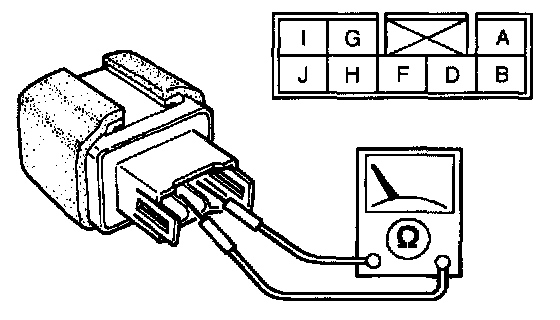

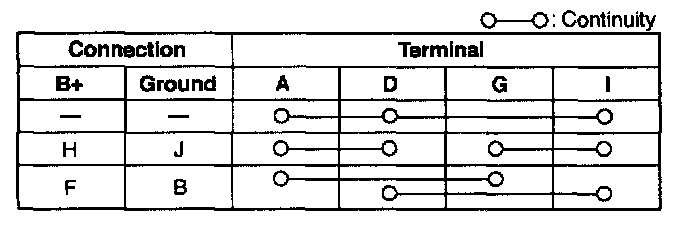

2. Apply battery voltage and check for continuity between the relay terminals.
3. If not as specified, replace the sunroof relay.
