Rollover Valve: Testing and Inspection

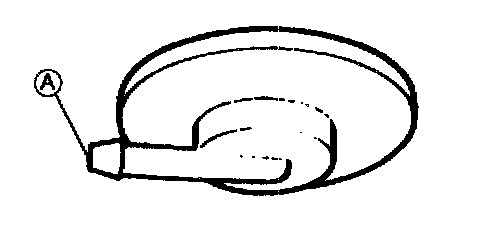

1. Verify that air flows through the valve from port A when the valve is held as shown in the figure.

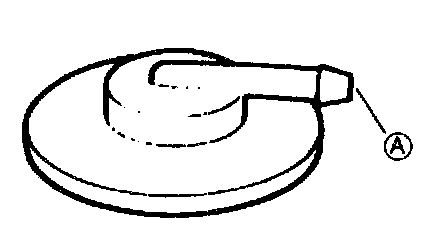

2. Verify that no air flows through the valve from port A when the valve is held as shown.
3. If not as specified, replace the fuel tank.
