Fuel Pipe Assembly Note

When retainer is not removed
1. Inspect the fuel pipe for kinks. Replace the fuel pipe as necessary.
2. Inspect that the inside of the pipe and the connector is free of foreign material and damage. Clean as necessary, taking care not to damage the sealing surfaces.

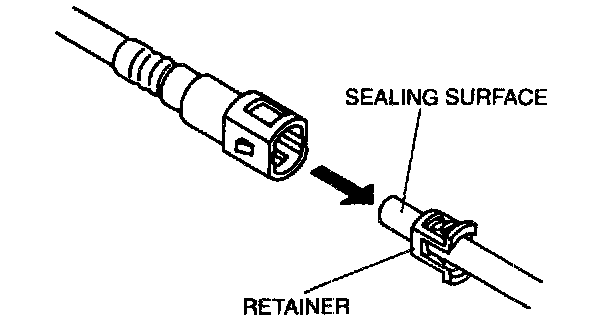

3. Align the pipe and connector so that the tabs of the retainer are correctly fitted into the connector. Push the connector into the retainer until two clicks are heard.




4. Pull the connector by hand and verify that it is installed securely. Visually inspect that the tabs of the retainer are securely fitted with the connector.

When retainer is removed

NOTE
- Use the designated genuine retainer only.

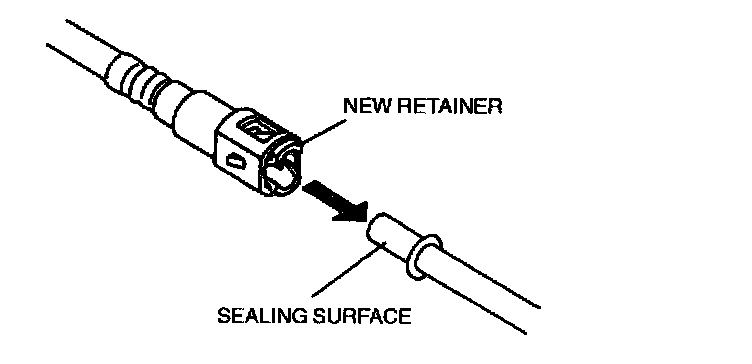

1. install a new retainer onto the connector.
2. Inspect that the inside of the pipe and the connector is free of foreign material and damage. Clean as necessary, taking care not to damage the sealing surfaces.
3. Push the connector into the retainer until a click is heard.
4. Pull the connector by hand and verify that it is installed securely. Visually inspect that the tabs of the retainer are securely fitted with the connector.
