Fuel Injector Resistance Test

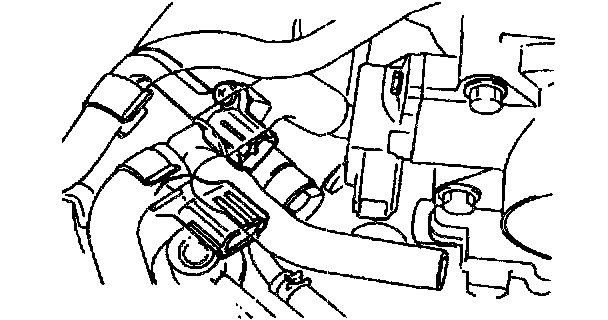

1. Disconnect the fuel injector connectors.

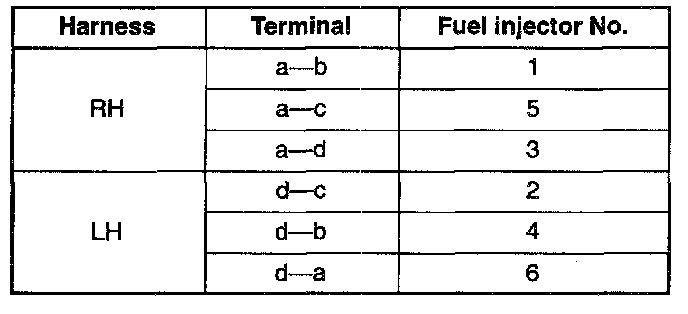

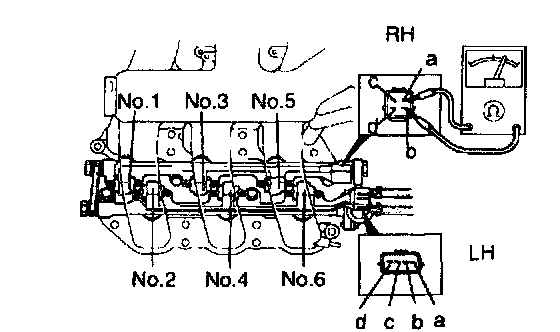

2. Measure resistance of the fuel injectors by using an ohmmeter.

Resistance
Approx. 13.8 Ohm [20°C (68°F}]




3. If not as specified, inspect continuity of the harness, and inspect for poor connection. If the harness is okay, replace the fuel injector.
