Fuel Injector Removal/Installation

WARNING
- Fuel line spills and leaks are dangerous Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedures".




1. Disconnect the negative battery cable.

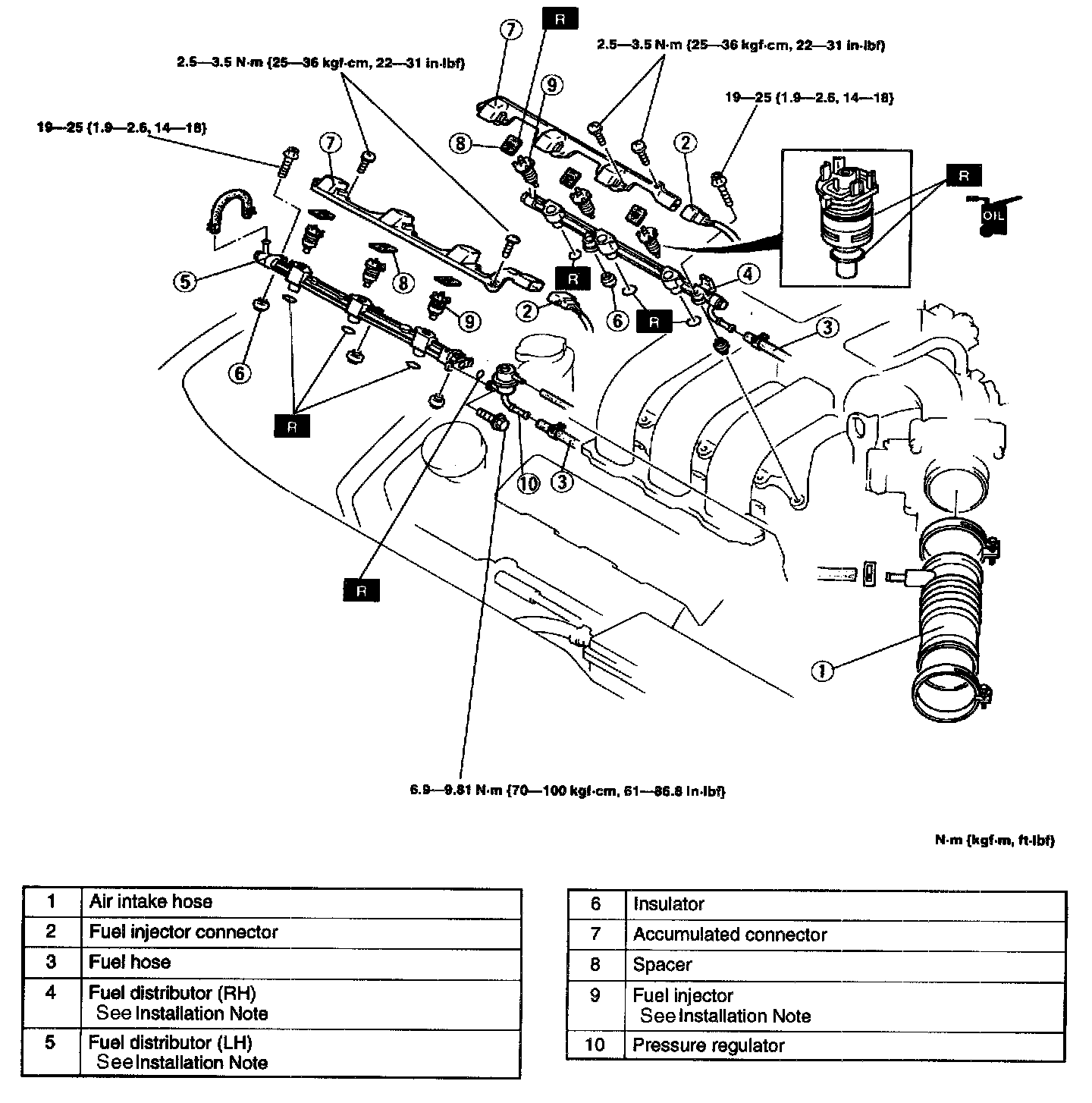

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
