EGR Solenoid Valve(Vacuum)

1. Remove the EGR solenoid valves.

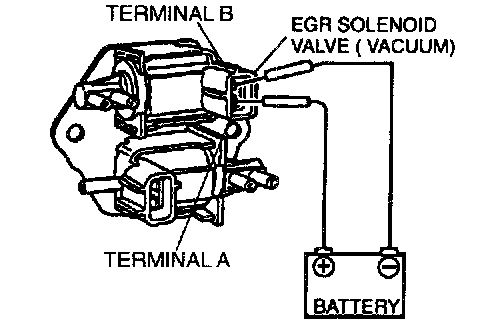

2. Apply battery positive voltage to terminal A and ground terminal B of the EGR solenoid valve (vacuum). Verify that air flows as shown below.

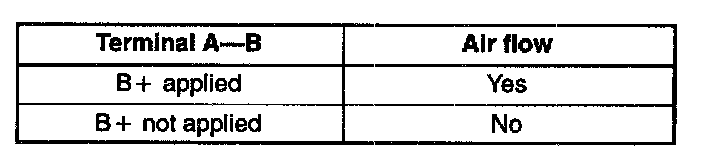

Specification

3. If not as specified, replace the EGR solenoid valve (vacuum).
