Canister Purge Solenoid: Testing and Inspection

1. Remove the purge solenoid valve.

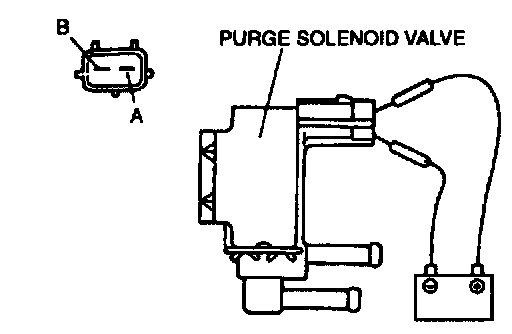

2. Apply battery positive voltage to terminal A and ground terminal B of the solenoid valve. Verify that air flows as shown below.

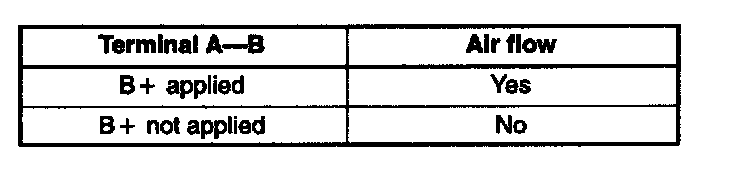

Specification

3. If not as specified, replace the purge solenoid valve.
