Daytime Running Lamp Resistor: Service and Repair

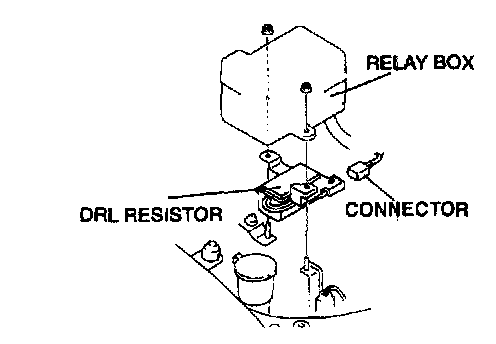

KJ
1. Disconnect the negative battery cable.
2. Lift up the relay box.
3. Disconnect the connector.
4. Remove the DRL resistor.
5. Install in the reverse order of removal.

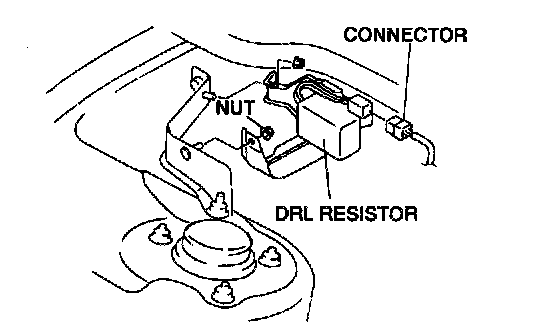

KL
1. Disconnect the negative battery cable.
2. Disconnect the connector.
3. Remove the nut.
4. Remove the DRL resistor.
5. Install in the reverse order of removal.
