Ventilation Fan Motor: Testing and Inspection

1. Remove the trunk end trim and trunk side trim (LH).
2. Disconnect the ventilation fan connector.

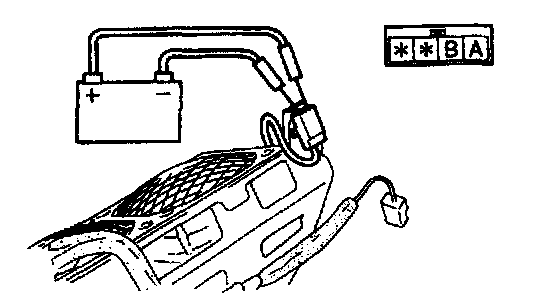

3. Connect battery positive voltage to terminal A and ground to terminal B. Verify that the fan operates.
4. If not as specified, replace the ventilation fan.
