Home
>>
Mazda
>>
1998
>>
Millenia V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor Relay
>>
Service and Repair
>>

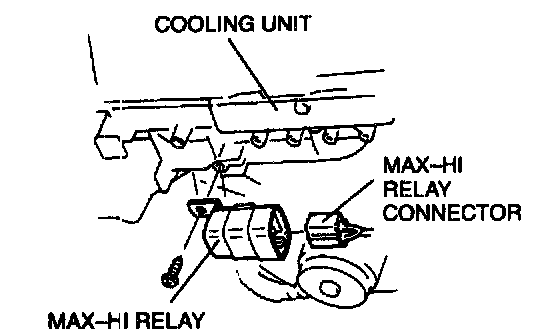

Max-Hi Relay
Max-Hi Relay
1.
Disconnect the negative battery cable.
2.
Remove the under cover.
3.
Remove the MAX-HI
relay
.
4.
Disconnect the MAX-HI
relay
connector.
5.
Install in the reverse order of removal.
