Thermostat: Service and Repair

1. Disconnect the negative battery cable.
2. Drain the engine coolant.

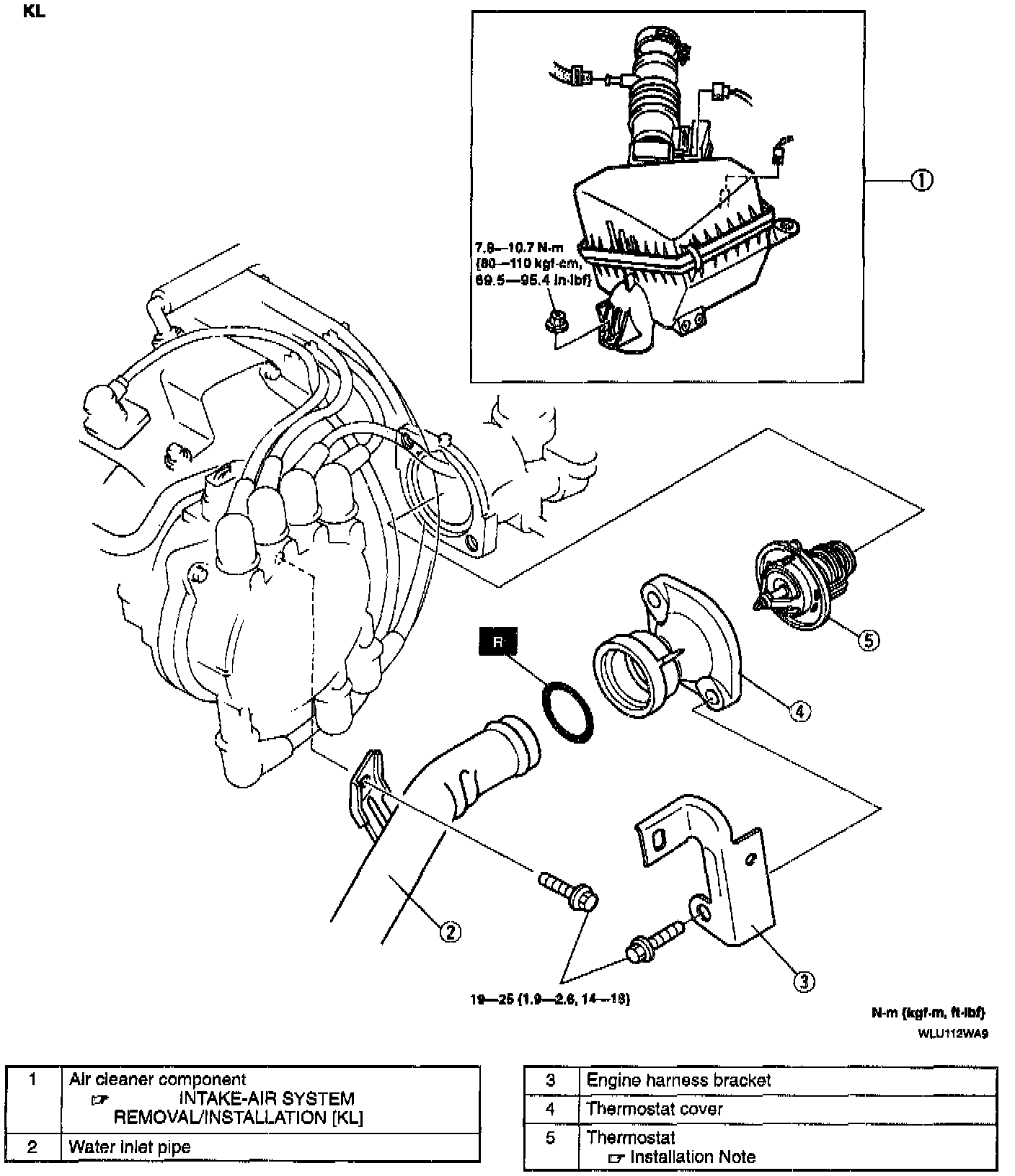

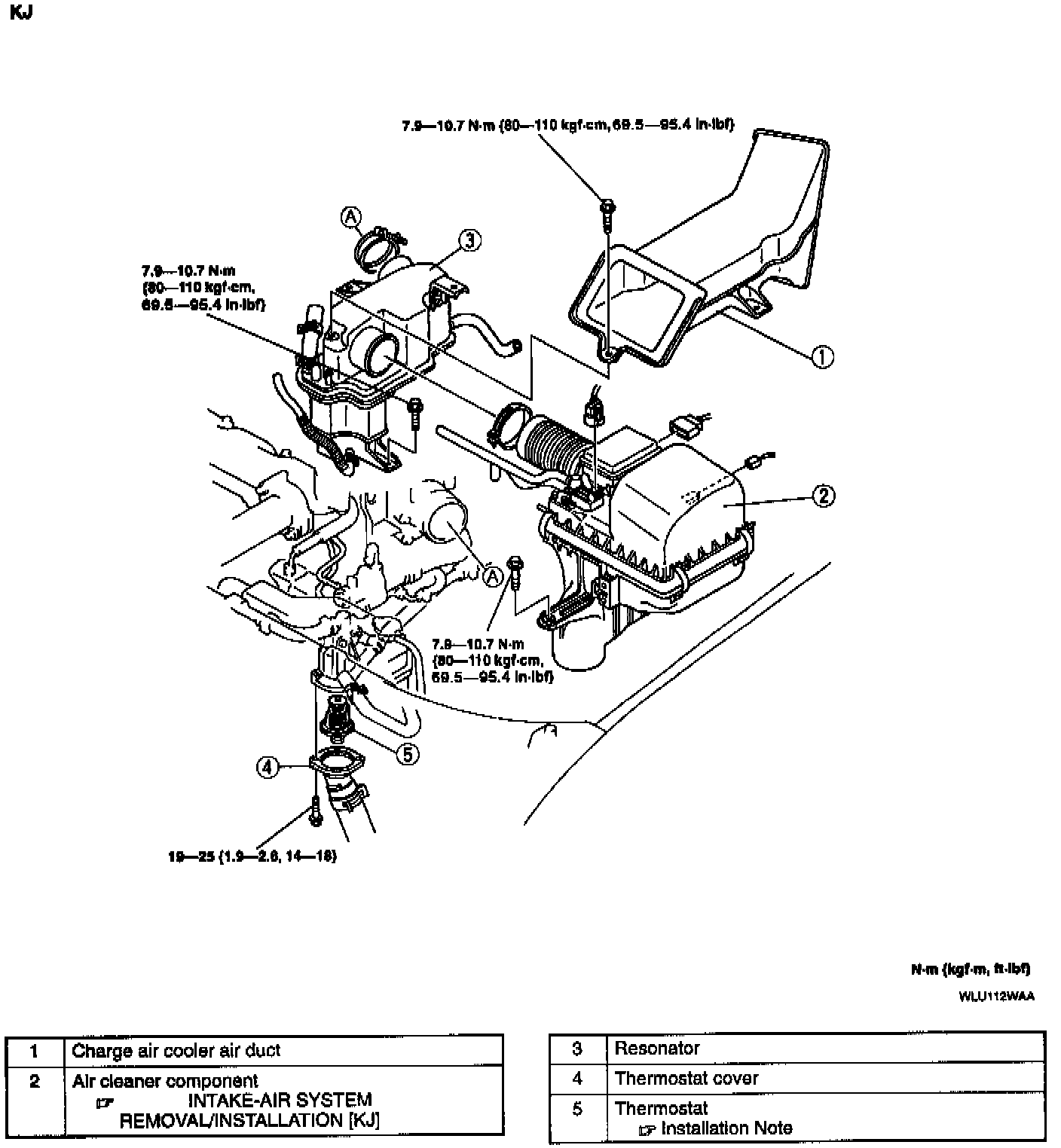

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Start the engine and check for coolant leaks.





THERMOSTAT (KL) INSTALLATION NOTE
- Install the thermostat into the thermostat case with the jiggle pin and projection at the top.

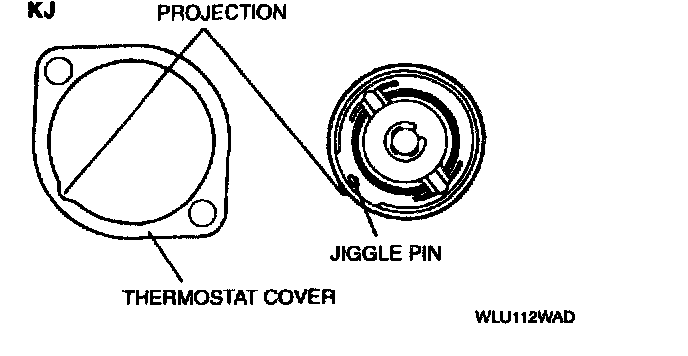

THERMOSTAT (KJ) INSTALLATION NOTE
- Install the thermostat into the thermostat cover with the jiggle pin and projection aligned.
