Radiator: Service and Repair

1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove the charge air cooler.

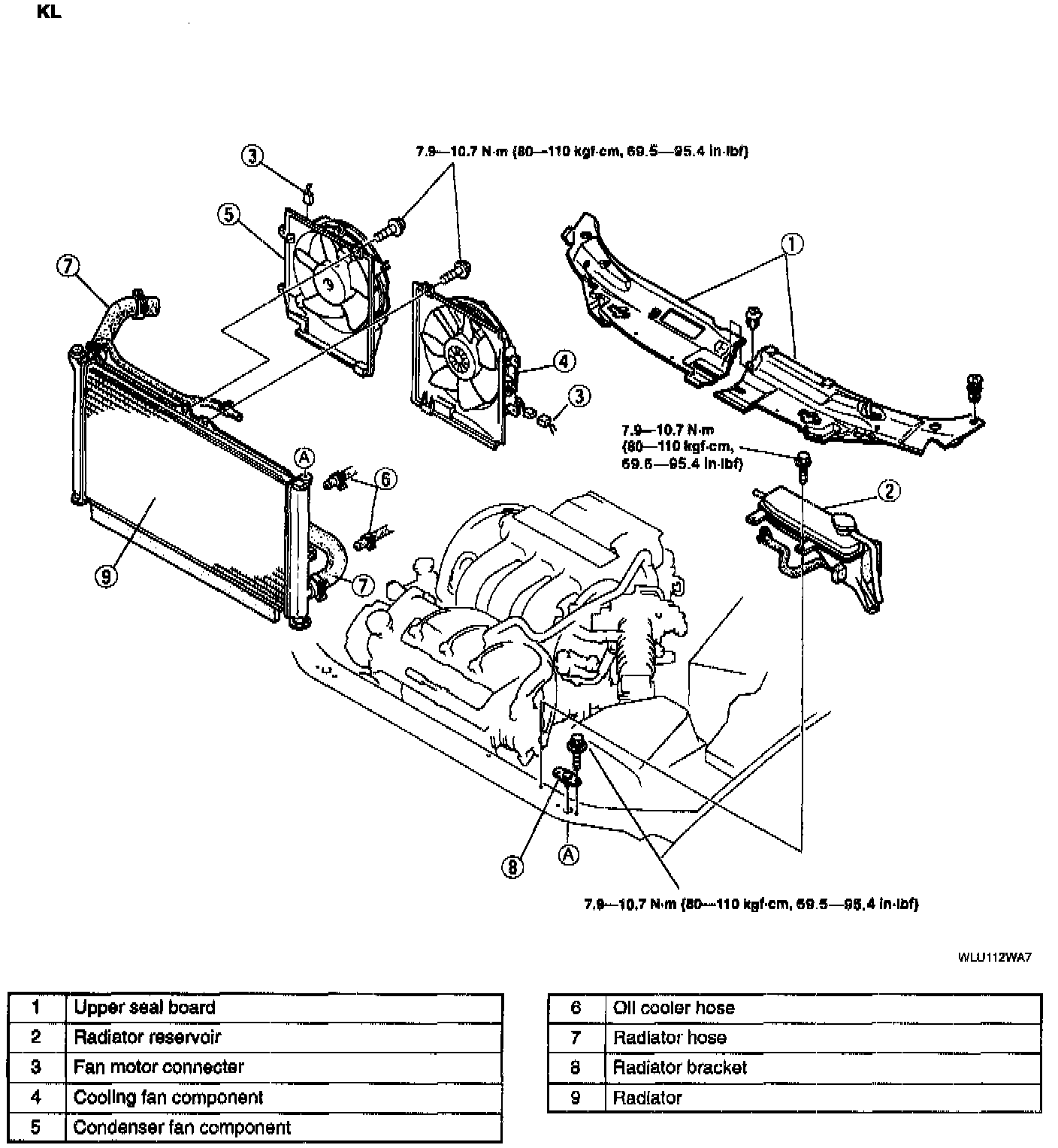

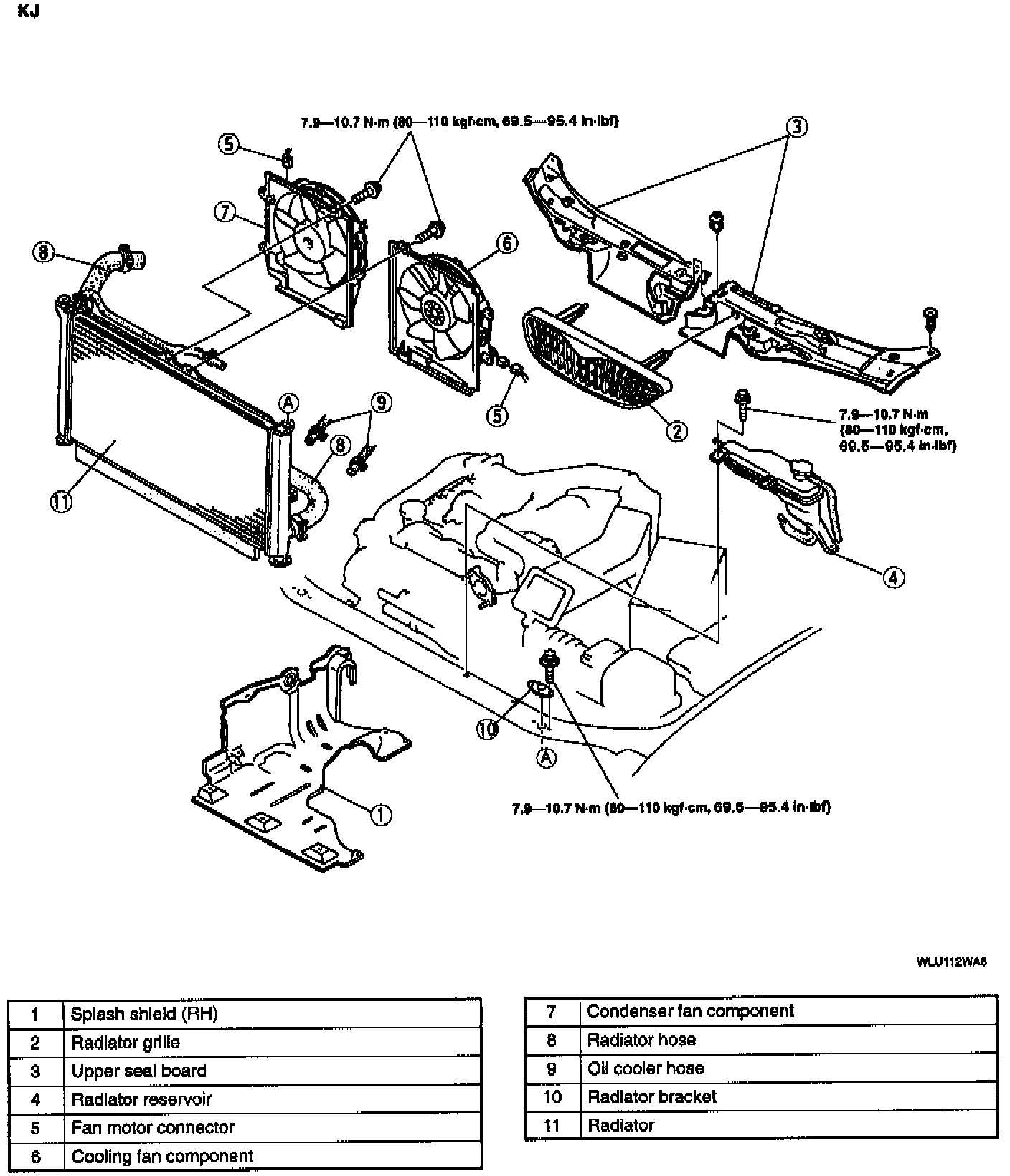

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Check the ATF level and add ATF if necessary.
7. Check the ATF and coolant leaks.
