Parking Brake Shoe: Testing and Inspection
INSPECTION1. Inspect the lining for peeling, cracking, and uneven wear.

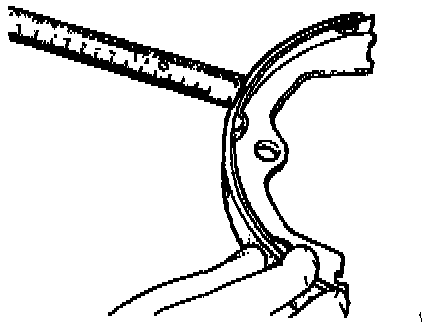

2. Measure the lining thickness.
Thickness 1.0 mm (0.04 inch) min
3. If the thickness is not within the specification, replace the parking brake shoes on the right and left wheels.
