Rear

DISC PAD INSPECTION





1. Look through the caliper inspection hole and inspect the remaining thickness of the pads.

Thickness 2 mm (0.08 inch) min.

2. Replace the pads as a set (right and left wheels) if either is at or less than the minimum thickness.

DISC PLATE THICKNESS INSPECTION
1. Measure the thickness of the disc plate.

CAUTION:
^ When it is necessary to machine the disc plate, if the disc plate is removed from the vehicle then machined, excessive runout may result. Machine the disc plate with It Installed on the vehicle.

Thickness
Standard: 9.5 mm (0.37 inch)
Minimum: 7.5 (0.29 inch)
Minimum thickness after machining by using a brake lathe on-vehicle: 8.3 mm (0.33 inch)

2. If the thickness is not within the specification, replace the disc plate.

DISC PLATE RUNOUT INSPECTION





1. Verify that there is no looseness in the wheel bearing.

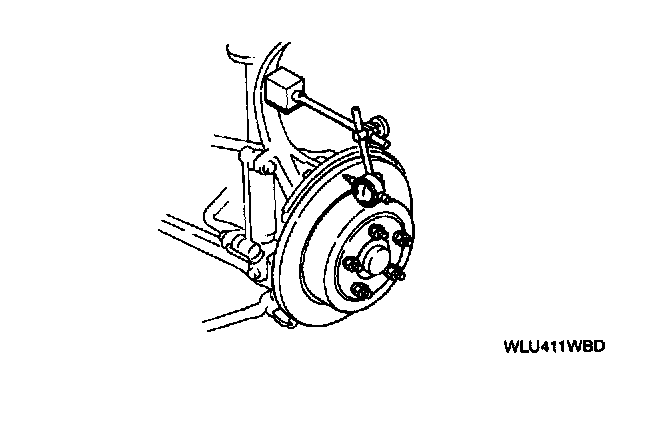

2. Measure the runout at the outer edge of the contact surface of the disc pad.

Runout 0.05 mm (0.002 inch) max.

3. If the runout is not within the specification, repair or replace the disc plate.
