Rear

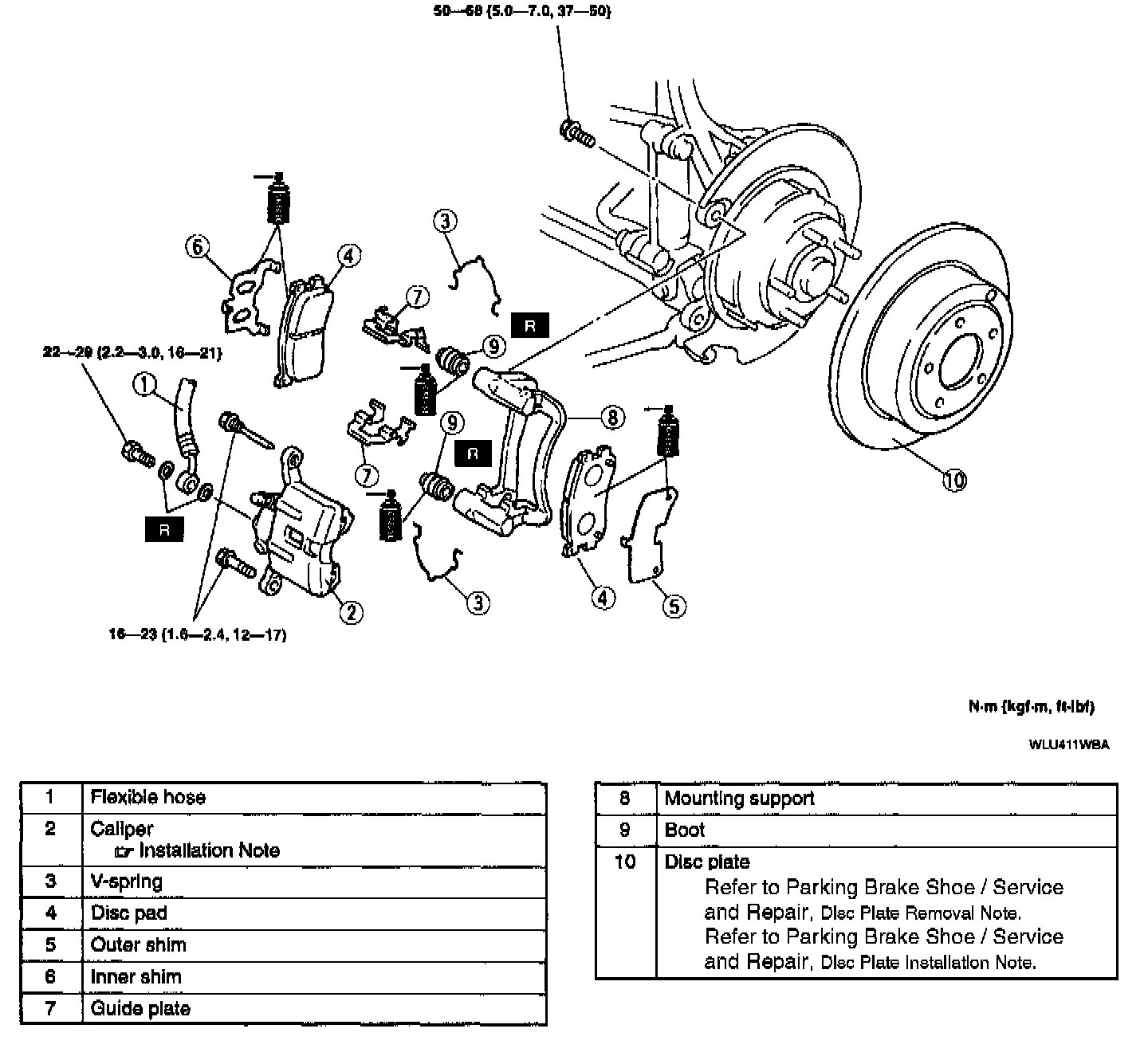

REMOVAL/INSTALLATION





1. Remove in the order indicated in the table
2. Install in the reverse order of removal.
3. After installation, depress the pedal a few times. Then rotate the wheel by hand and verify that the brakes do not drag.
4. If the disc plate has been replaced, settle the parking brake shoes. Refer to Parking Brake System / Parking Brake Shoe / Brake Shoe Settling.

Caliper Installation Note (2)





1. Push the piston fully inward by using the SST.
2. Install the caliper.
