Rear

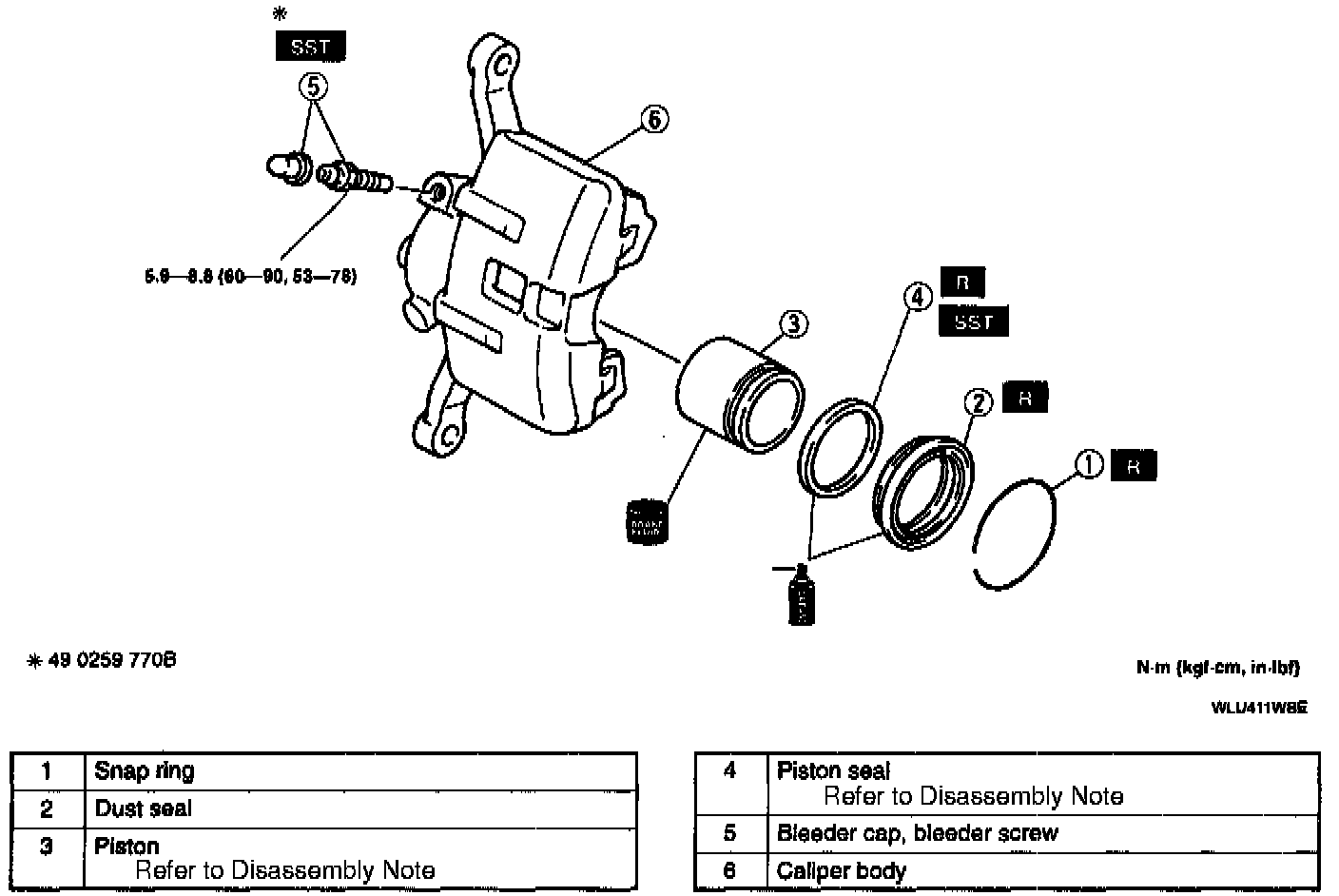

DISASSEMBLY/ASSEMBLY





1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

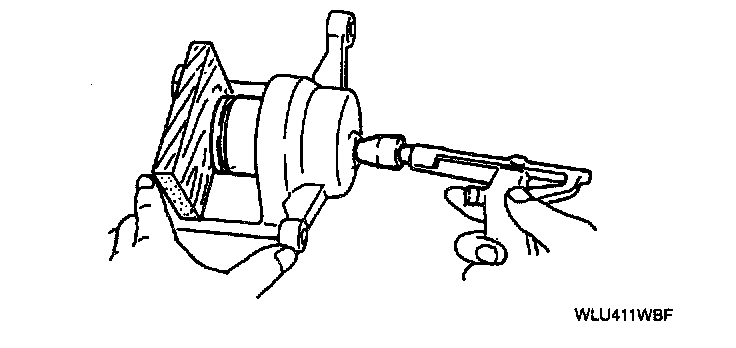

Piston Disassembly Note





1. Place a piece of wood in the caliper.

2. Gently blow compressed air through the pipe hole to force the piston out of the caliper.

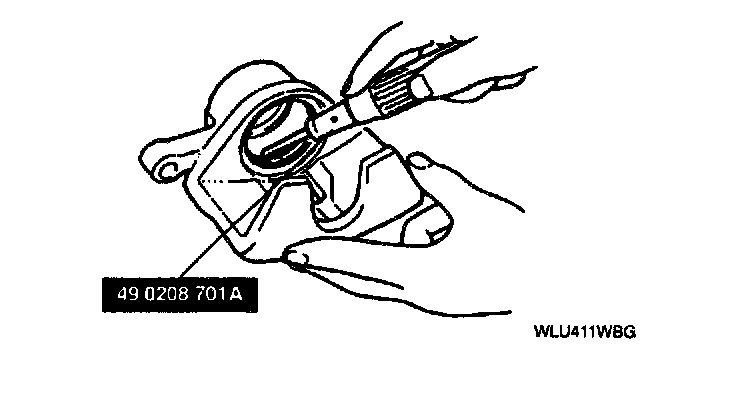

Piston Seal Disassembly Note





- Remove the piston seal from the caliper by using the SST.
