Door Lock Cylinder: Testing and Inspection

1. Remove the door screen.
2. Disconnect the door key cylinder switch connector.
3. Check for continuity between the terminals of the connector with the key cylinder in the following positions.

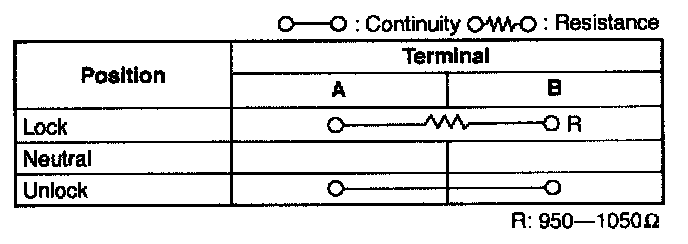

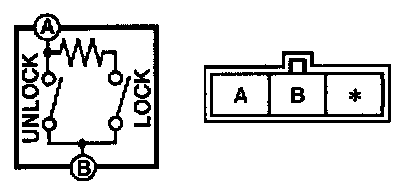

(driver's side)

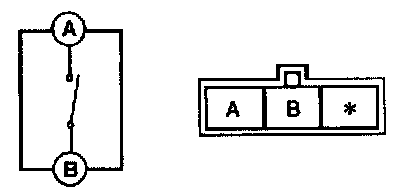

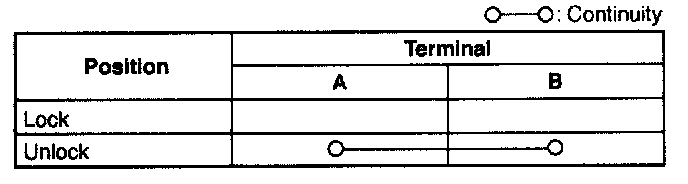

(passenger's door)

4. If not as specified, replace the door key cylinder.
