ABS Main Relay: Service and Repair

REMOVAL/INSTALLATION

NOTE: The ABS relay contains the fail-safe relay and the motor relay.

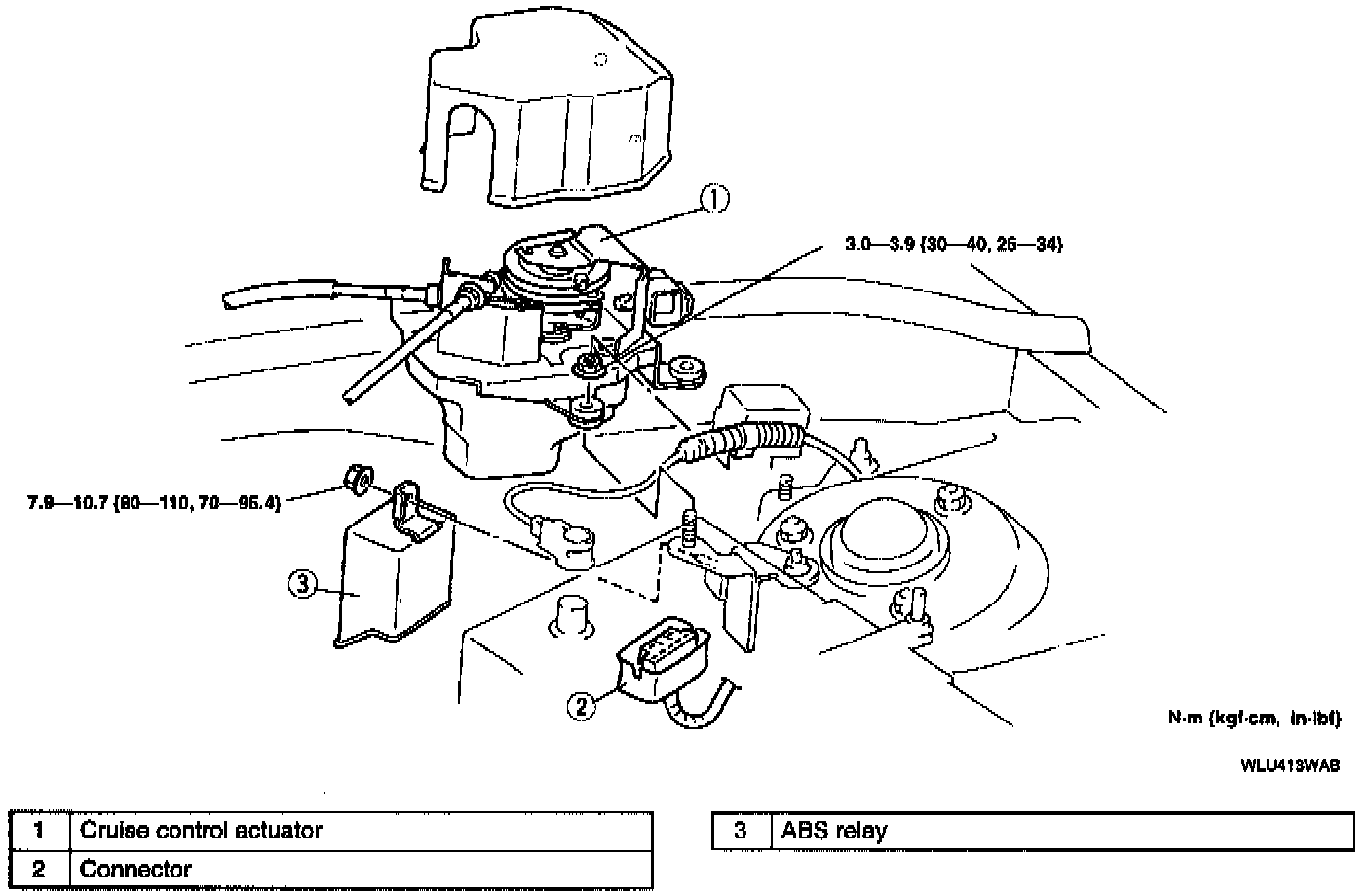

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
