Front

REMOVAL/INSTALLATION

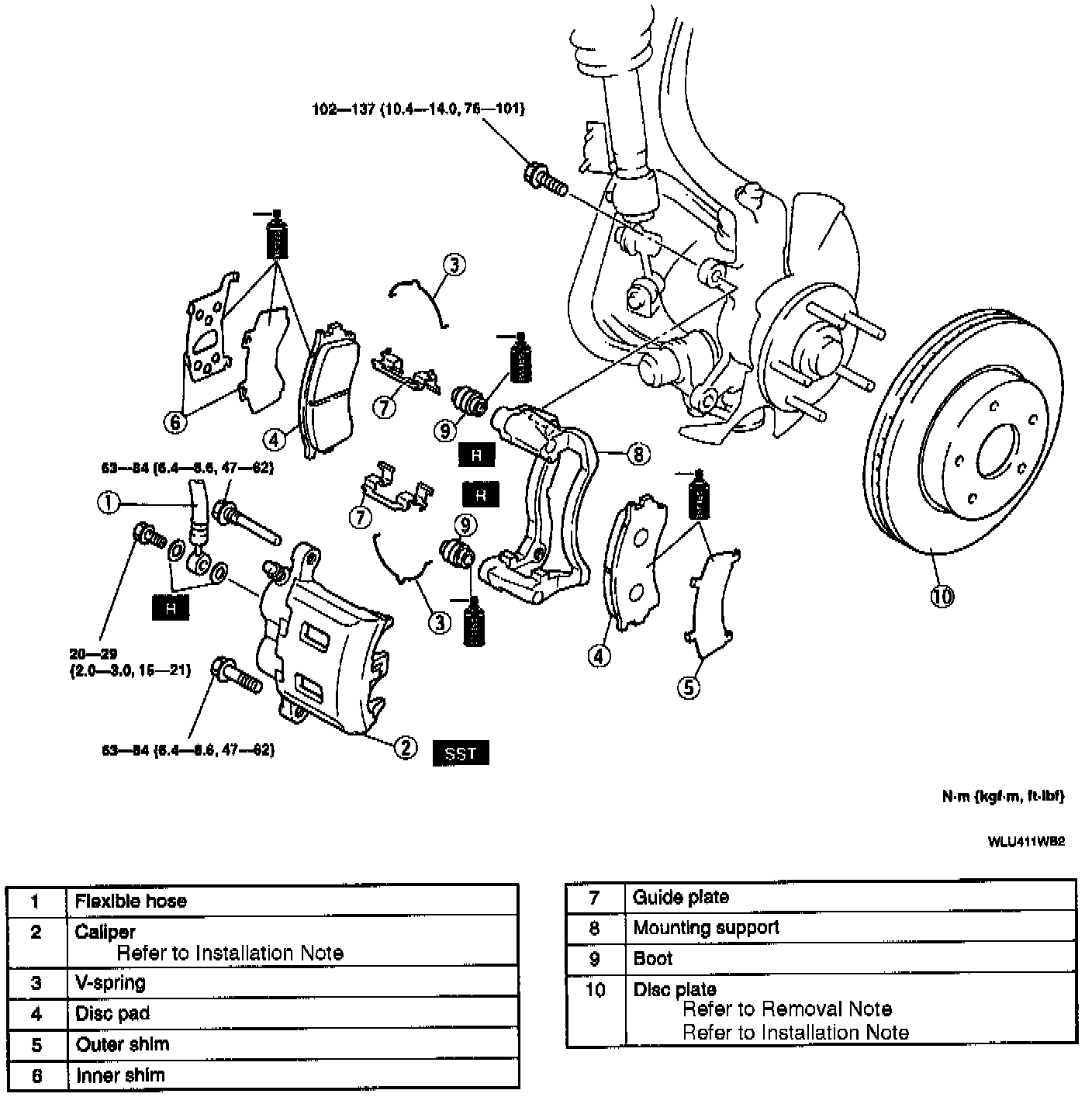

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, depress the pedal a few times. Then rotate the wheel by hand, and verify that the brakes do not drag.

Disc Plate Removal Note





- Mark the wheel hub bolt and disc plate before removal for reference during installation.


Caliper Installation Note





1. Push the piston fully inward by using the SST.
2. Install the caliper.


Disc Plate Installation Note

1. Remove any rust or grime on the contact face of the disc plate and wheel hub.
2. Install the disc plate and align the marks made before removal.
