Hydraulic Control Assembly - Antilock Brakes: Service and Repair

REMOVAL/INSTALLATION

1. Remove the battery.

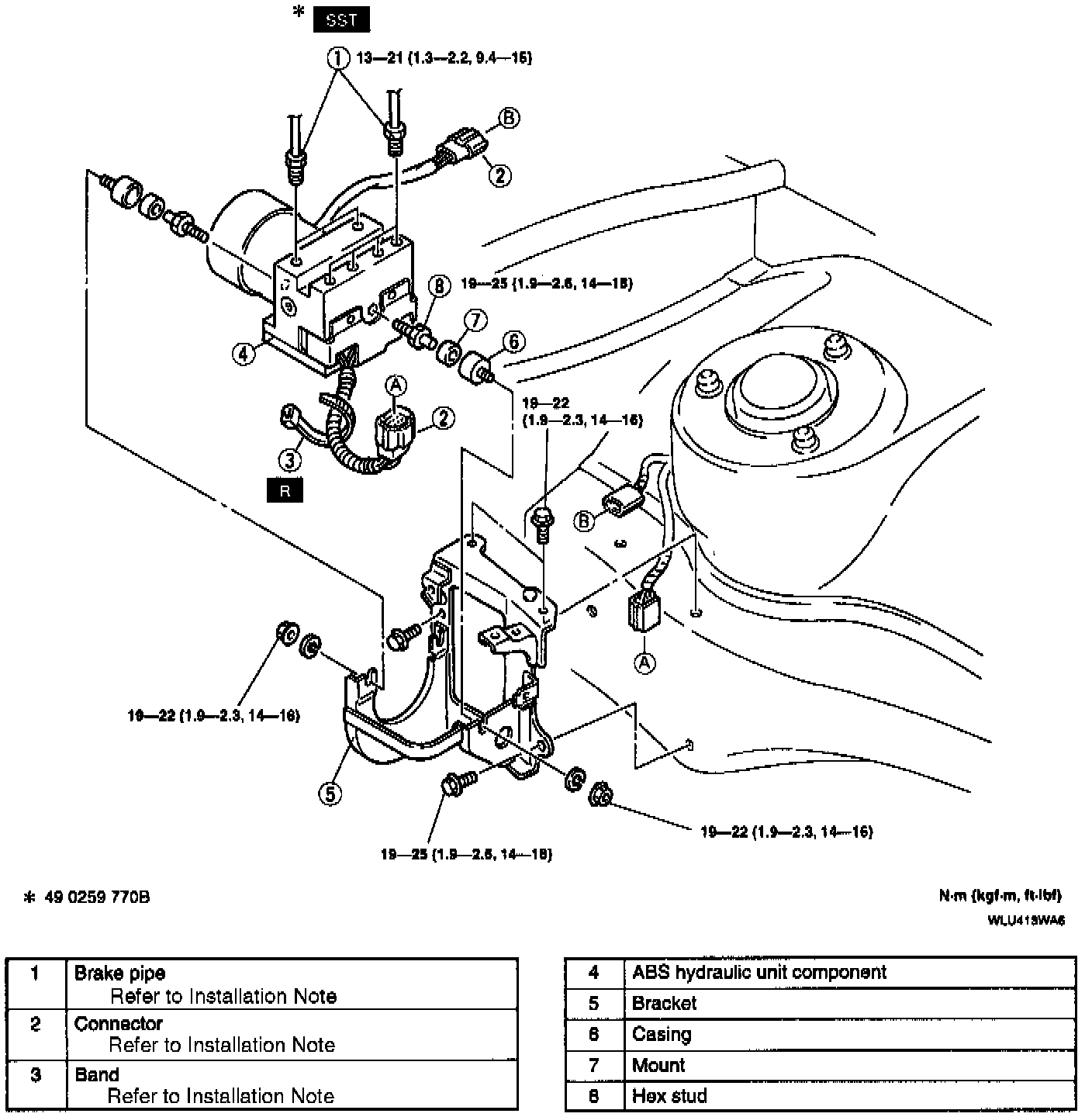

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

Band Installation Note (3)





1. Install the band around the bracket and the harness, and tighten the band until it contacts the bracket.
2. Cut off the rest of the band end.

Brake Pipe Installation Note (1)

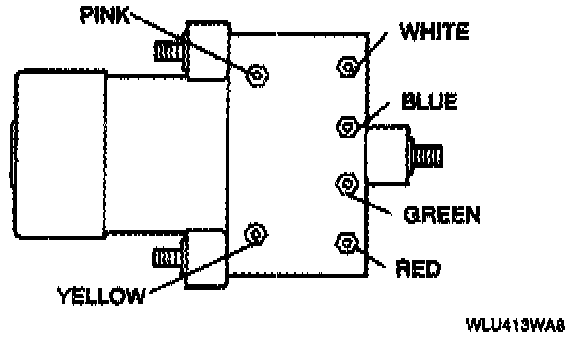

- Align the colors on the brake pipes with the pipe positions of the ABS hydraulic unit as indicated, and install the pipes.
