Headliner: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the A-pillar trim, B-pillar upper trim and C-pillar trim.

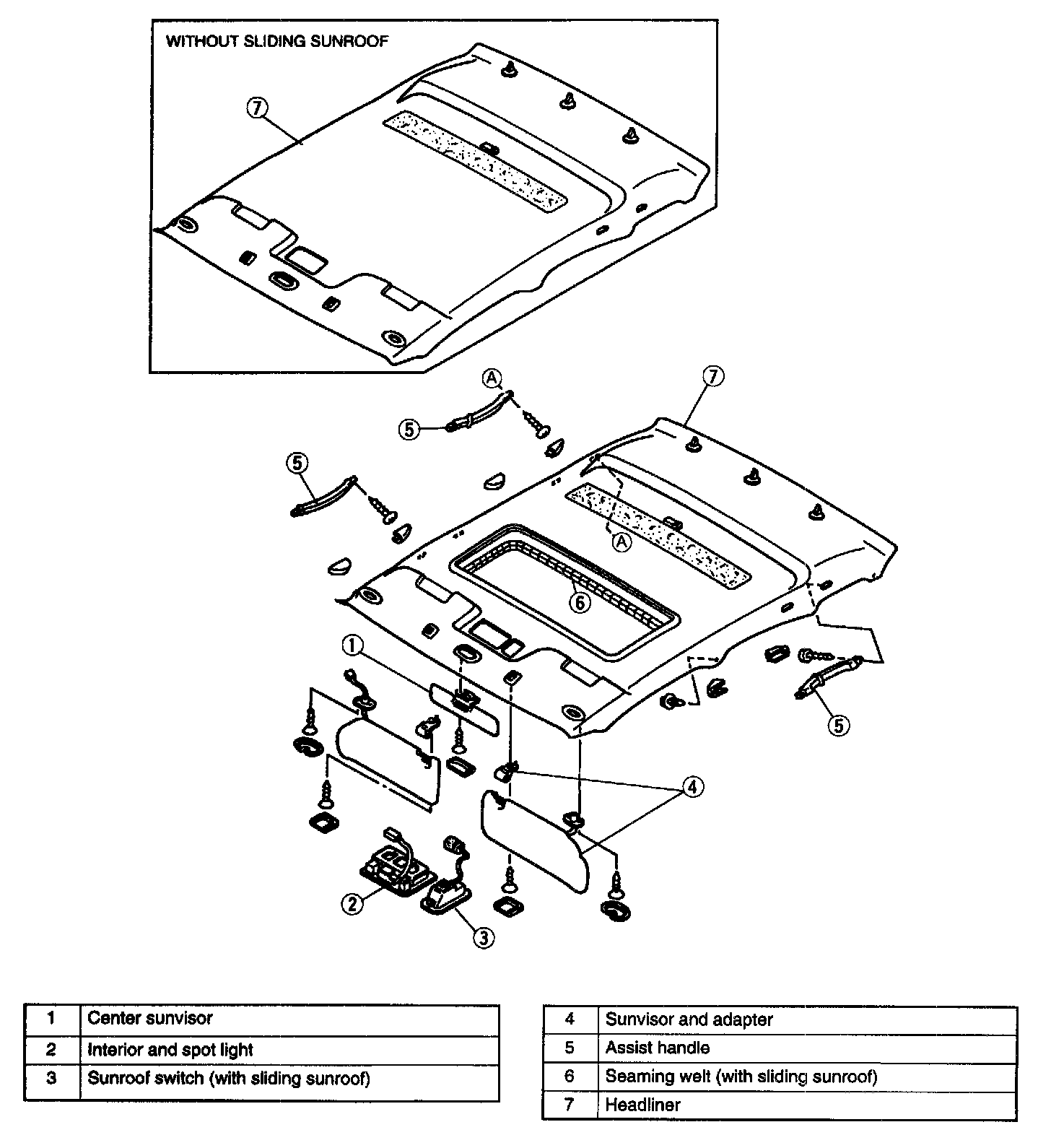

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

Center Sunvisor Removal Note

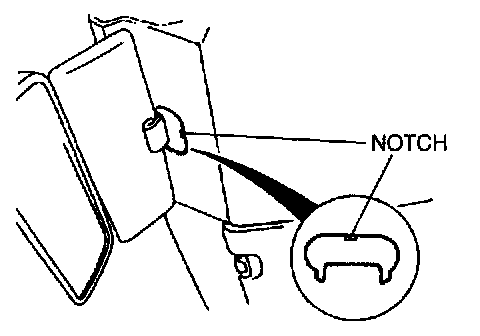

1. Insert a screwdriver which has been wrapped in tape into the notch of the cap and pry it out.
2. Remove the installation screws to remove the center sunvisor.

Headliner Removal Note

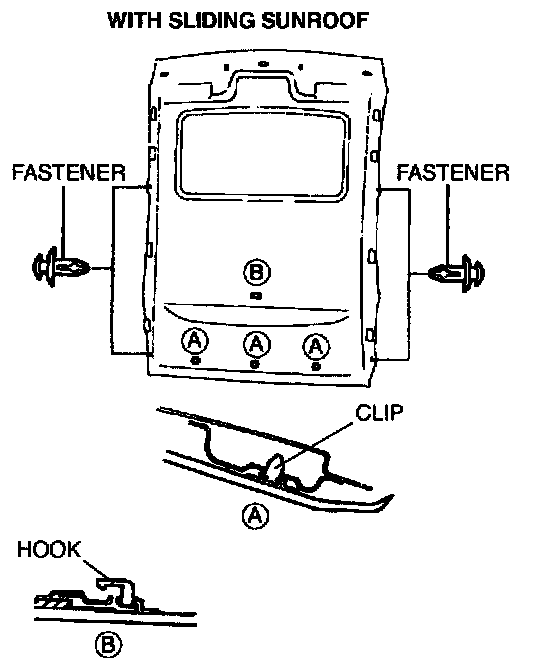

1. Remove the headliner mounting fasteners.
2. Disconnect the clips at the rear of the headliner.







3. Remove the hook to remove the headliner.
4. Slide back the front seat and fold the seat down.

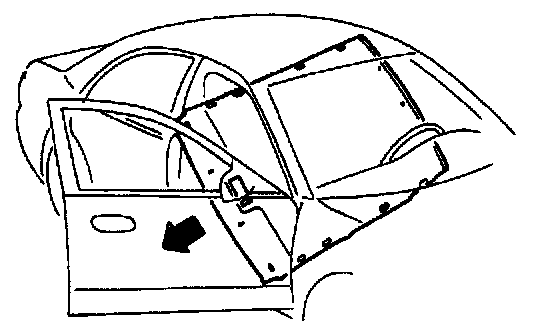

5. Take out the headliner from the passenger's side.
