Mazda
>>
1998
>>
Millenia L V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Central Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

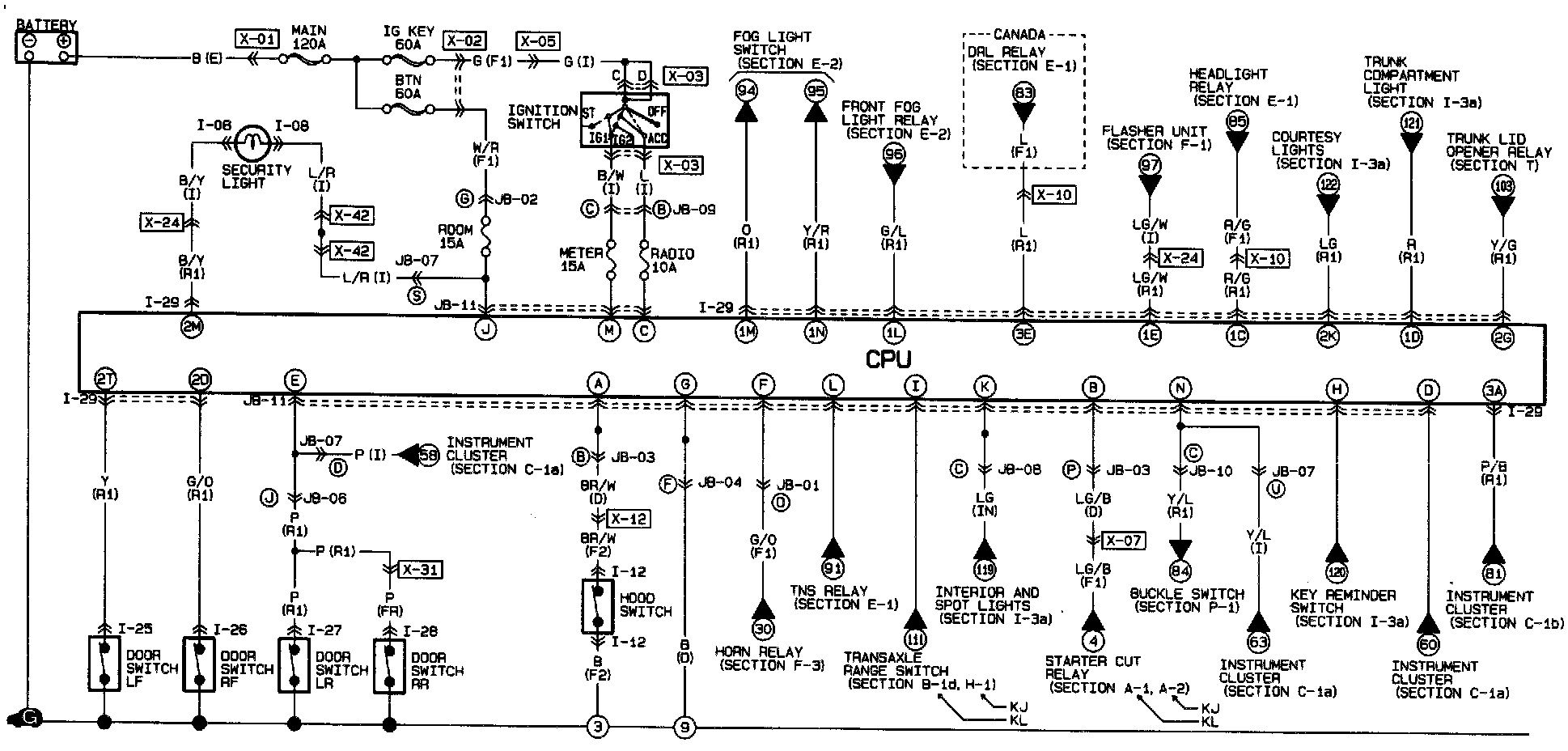

CPU, Theft-Deterrent System:
