Primary Coil Winding

1. Disconnect the ignition coil connector.

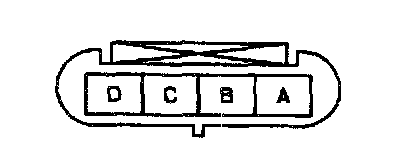

2. Measure the resistance by using an ohmmeter. From terminal A to D and terminal B to D and terminal C to D.

Specification: 0.45-0.55 ohms (20°C (68°F))

3. If not as specified, replace the ignition coil.
