Solenoid Valves

SOLENOID BODY REMOVAL/INSTALLATION [LA4A-EL]
1. Remove the control valve body.

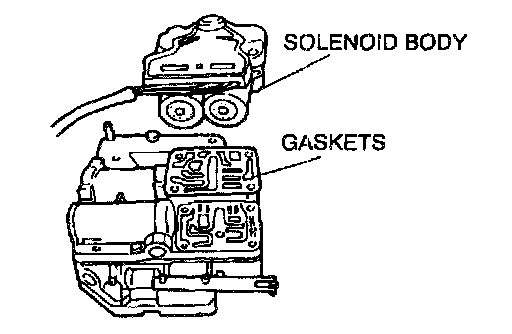

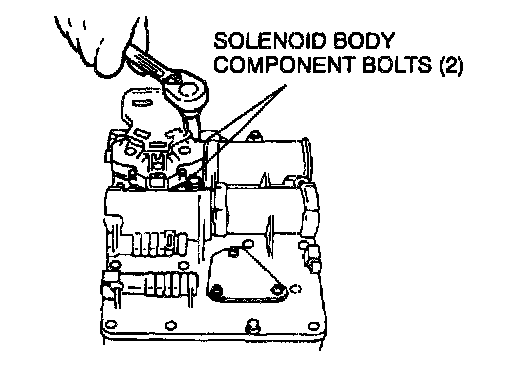

2. Remove the solenoid body component.

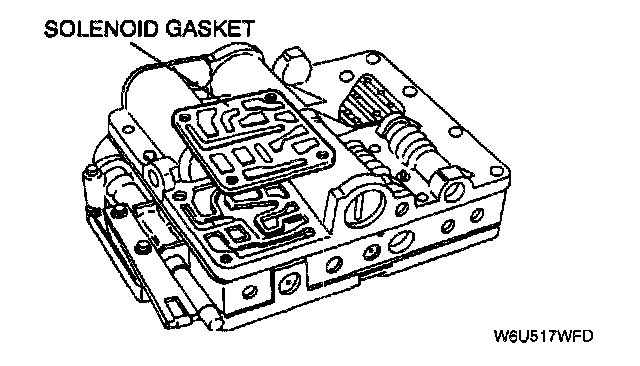

3. Remove the solenoid gasket from the accumulator body. Discard the solenoid gasket.
4. Install the solenoid body and a new gasket on the accumulator body.

NOTE: Match the solenoid body gasket to the passages.

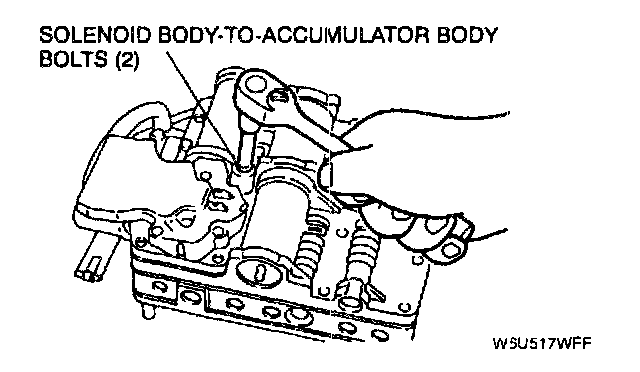

5. Install the bolts.

Tightening torque 10 Nm (1.1 kgf-m, 7 ft. lbs.)

6. Install the control valve body.
7. Carry out the time lag test and line pressure test.
8. Carry out the road test.
