On Vehicle Service

OIL SEALS REMOVAL/INSTALLATION [LA4A-EL]
1. Remove the drive shaft and joint shaft.

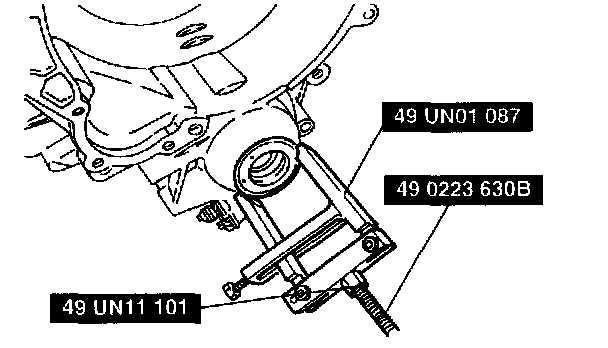

2. Remove the differential seals using the SSTs or equivalent.
3. Apply a thin coat of petroleum jelly on the outside and the lip of the new differential seals.

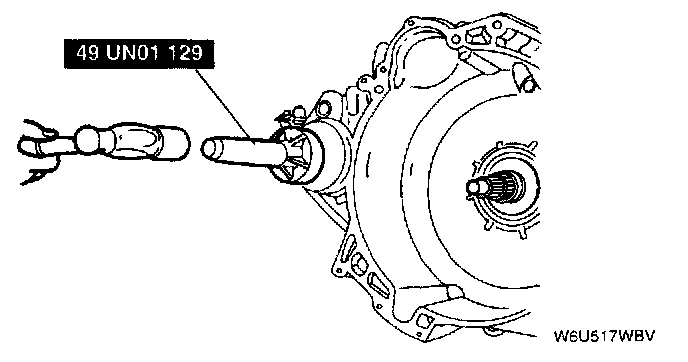

4. Use the SST to tap in the differential seals.
5. Install the drive shaft and joint shaft.
