Fuel Injector Resistance Test

1. Disconnect the fuel injector connectors.

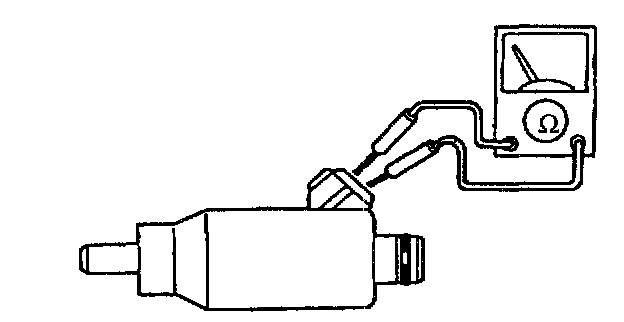

2. Measure the resistance of the fuel injector.

Resistance: 12-16 ohms @ 20°C (68°F)

3. if not as specified, replace the fuel injector.
