Installation

Engine Mount Installation

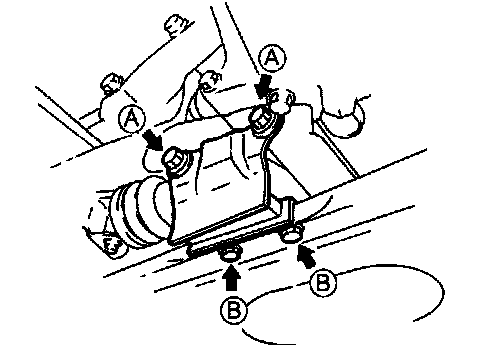

1. Hand tighten the nuts marked (B). (No 2 engine mount)
2. Install the bolts and nuts shown.

Tightening torque
(A): 67-93 N.m (6.8-9.5 kgf.m, 50-68 ft.lbf)

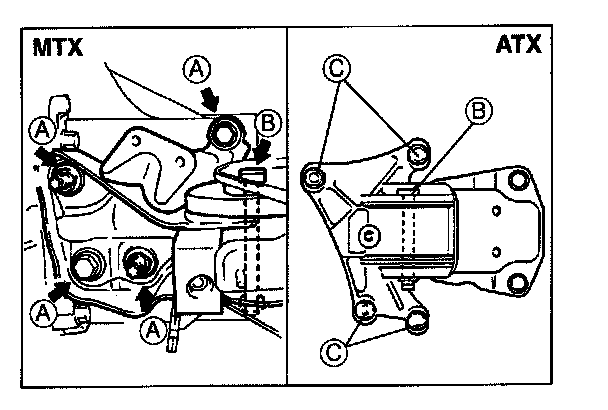

3. Install the No.1 engine mount mounting bolts.

Tightening torque
MTX: 67-93 Nm (6.8-9.5 kgf.m, 50-68 ft.lbf)
ATX
(A): 67-104 N.m (6.8-10.7 kgf.m, 50-77.3 ft.lbf)
(B): 86-116 N.m (8.7-11.9 kgf.m, 63-86.0 ft.lbf)
(C): 67-93 N.m (6.8-9.5 kgf.m, 50-68 ft.lbf)

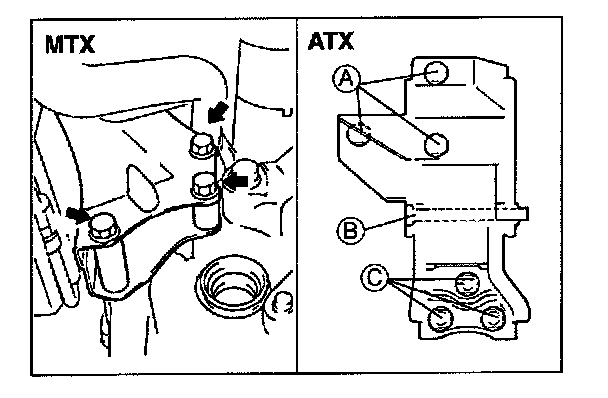

4. Install the No.3 engine mount rubber.

Tightening torque
Nut: 74-102 N.m (7.5-10.5 kgf.m, 55-75.9 ft.lbf)
Bolt: 86-116 N.m (8.7-11.9 kgf.m, 6-6.0 ft.lbf)

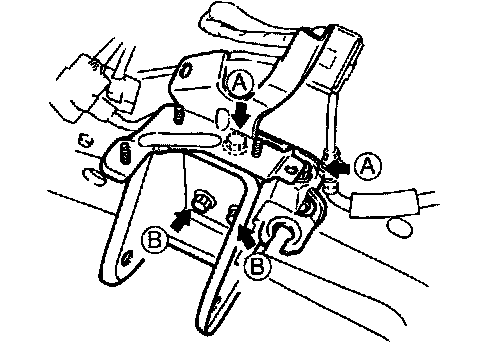

5. Install the No.4 engine mount bracket.
6. Hand tighten bolts (B).
7. Tighten bolts (B).
8. Tighten bolts (A).

Tightening torque
(A): 59-80 N.m (6.0-8.2 kgf.m, 44-59 ft.lbf)
(B): 59-80 N.m (6.0-8.2 kgf.m, 44-59 ft.lbf)

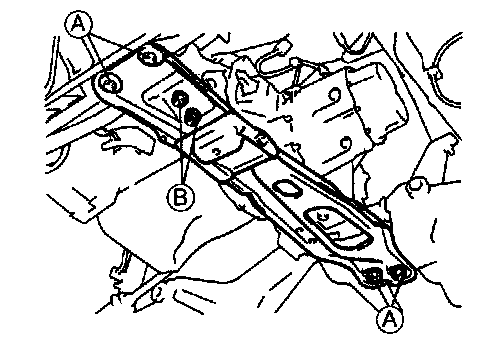

9. Install the No.4 engine mount rubber.

Tightening torque
MTX
(A): 67-93 N.m (6.8-9.5 kgf.m, 50-68 ft.lbf)
(B): 86-116 Nm (8.7-11.9 kgf.m, 63-86.0 ft.lbf)
ATX
(C): 38-51 N.m (3.8-5.3 kgf.m, 28-38 ft.lbf)

10. Remove the chain from the engine hangers.
11. Tighten the No.2 engine mount nuts. (Refer to step 1.)

Tightening torque:
75-104 Nm (7.6-10.7 kgf.m, 55-77.3 ft.lbf)





12. Tighten the No.2 engine mount rubber through bolt.

Tightening torque:
86-116 Nm (8.7-11.9 kgf.m, 63-86.0 ft.lbf)

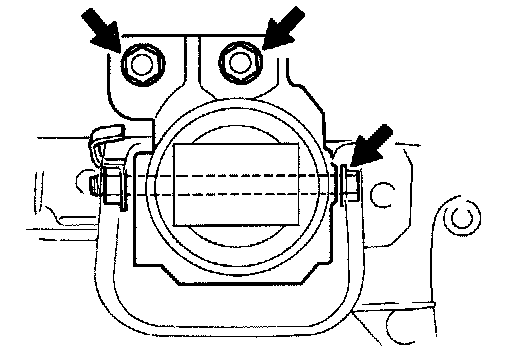

13. Install the No.5 engine mount rubber as shown.

Tightening torque
(A) : 55-80 Nm (5.6-8.2 kgf.m, 41-59 ft.lbf)
(B) : 44-60 Nm (4.4-6.2 kgf.m, 32-44 ft.lbf)

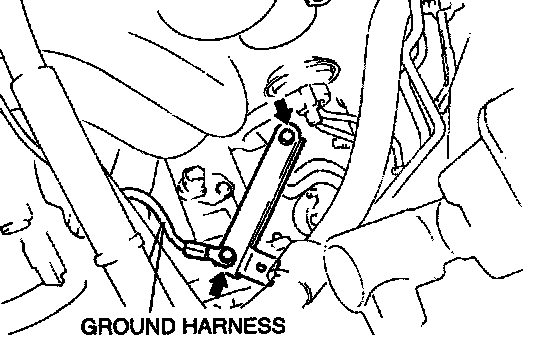

14. Install the No.1 engine mount stay bracket and ground harness (MTX).

Tightening torque:
6.9-9.8 N.m (70-100 kgf.cm, 61-86.8 in.lbf)
