626 LX L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
System Diagram
>>
Computers and Control Systems
>>
B-1c
B-1c

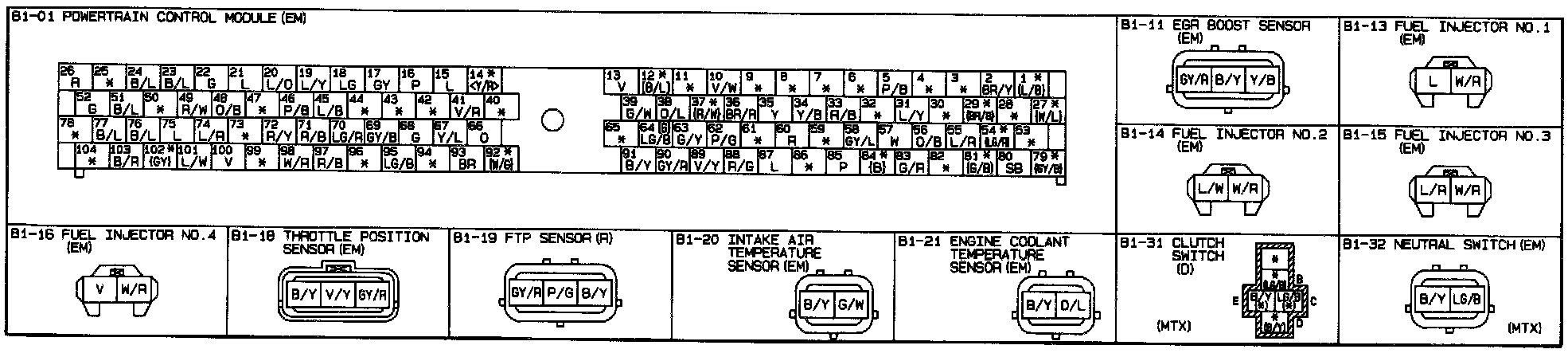

Engine Control System (FS)- Connectors:
