Pinout Values and Diagnostic Parameters

ABS HARNESS AND INPUT SIGNAL INSPECTION








1. Disconnect the ABS CM connector with the ignition switch at OFF.

CAUTION: Be careful not to damage the terminals during inspection.

2. Insert a thin isolation plate to the short bar of the connector.

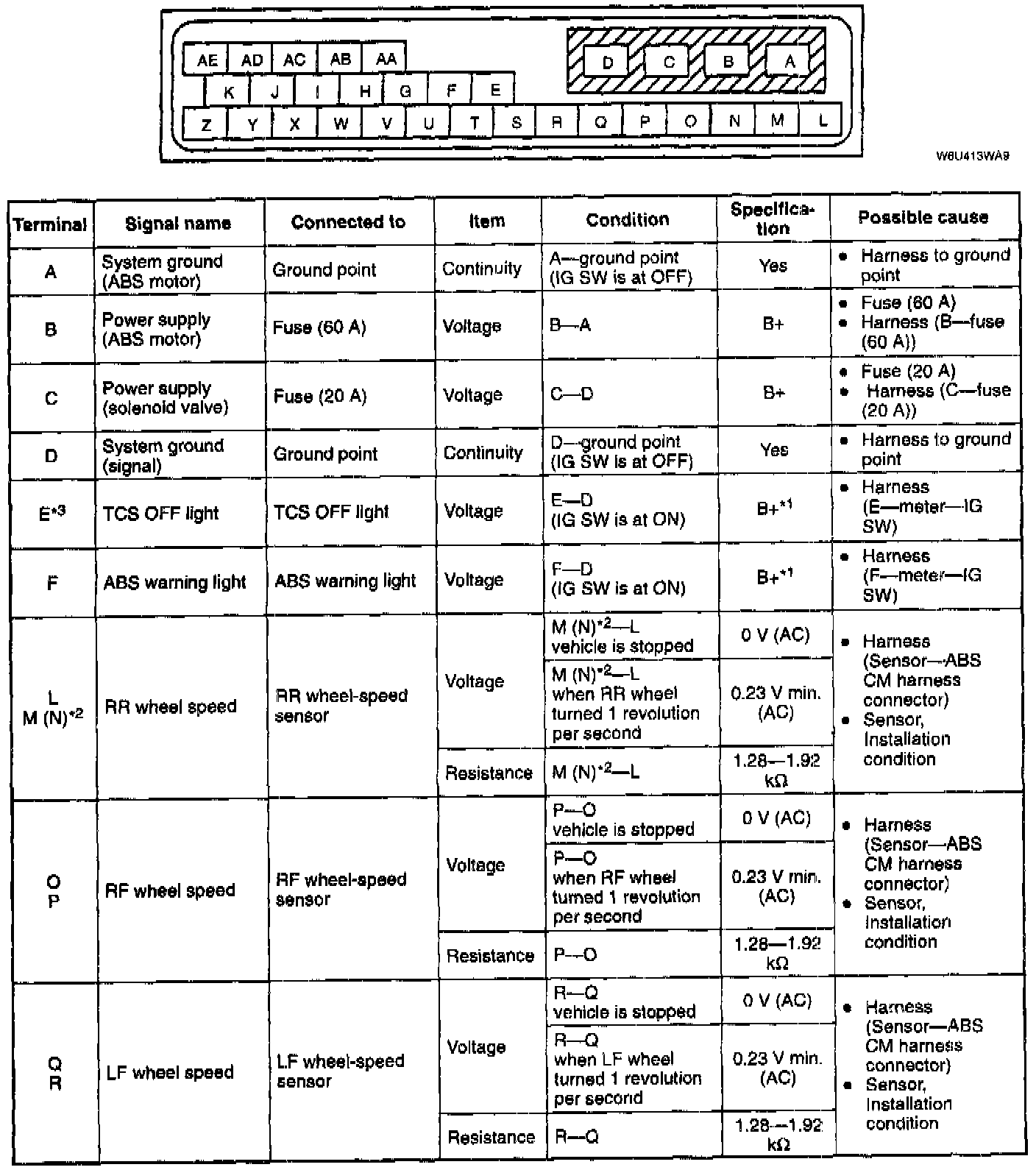

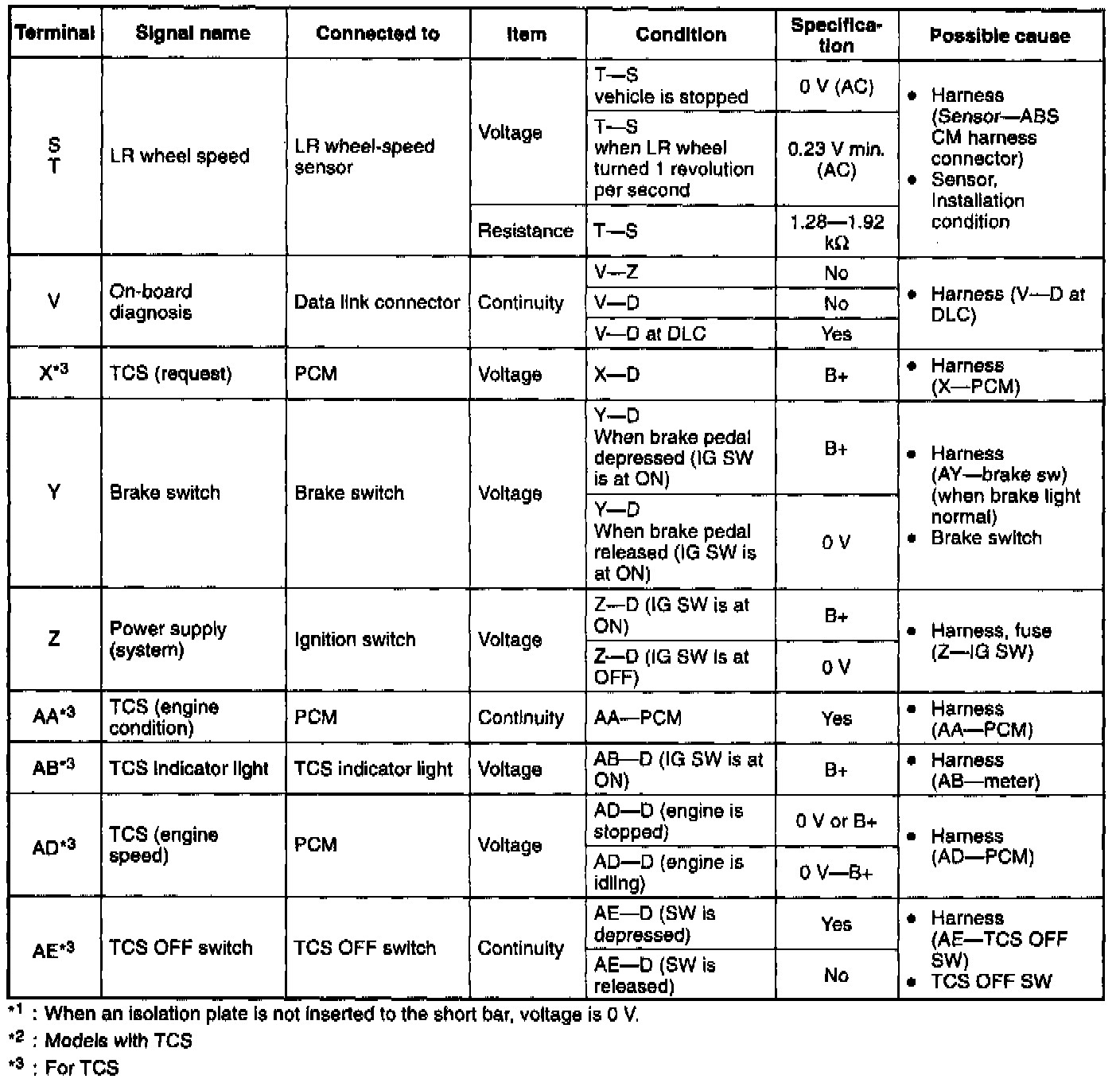

3. Attach a wire to the tester lead to avoid damaging the terminals then inspect voltage, resistance or continuity, referring to the table.
