Clutch Pedal Assembly: Adjustments

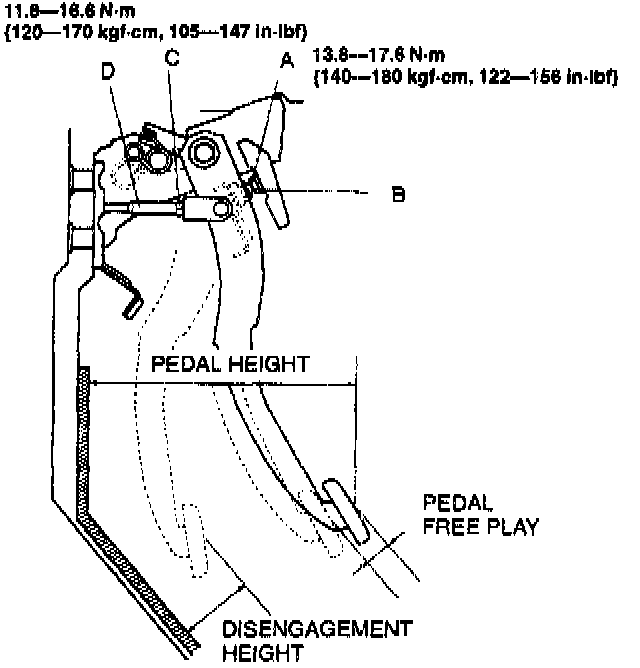

CLUTCH PEDAL ADJUSTMENTClutch Pedal Height
1. Measure the distance from the upper surface of the pedal pad to the carpet.
Pedal height 194 - 202 mm (7.4 - 7.95 inch) (with carpet)
2. As necessary, adjust the pedal height by turning adjustment bolt A and locknut B.
Clutch Pedal Free Play
1. Depress the clutch pedal by hand until clutch resistance is felt, and measure the pedal free play.
Pedal free play 1.0 - 3.0 mm (0.04 - 0.11 inch)
Total pedal free play 5.0 - 14.0 mm (0.20 - 0.55 inch)
2. As necessary, adjust the Pedal free play by turning locknut C and adjusting push rod D.
3. Verify that the disengagement height (from the upper surface of the pedal pad to the carpet) is correct when the pedal is fully depressed.
Minimum disengagement height 38 mm (1.50 inch) (With carpet)
