Seals and Gaskets: Service and Repair

OIL SEAL REMOVAL/INSTALLATION [GF4A-EL]
1. Remove the drive shaft and joint shaft.
2. Remove the oil seal by using a screwdriver.





3. Tap the new oil seal into the transaxle case by using the SST.
4. Install the drive shaft and joint shaft.

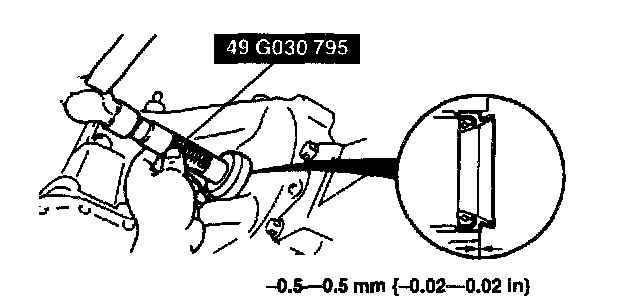

5. Using the SST and a hammer, tap the new oil seal in evenly until the SST contacts the transaxle case.
6. Coat the lip of the oil seal with ATF.
